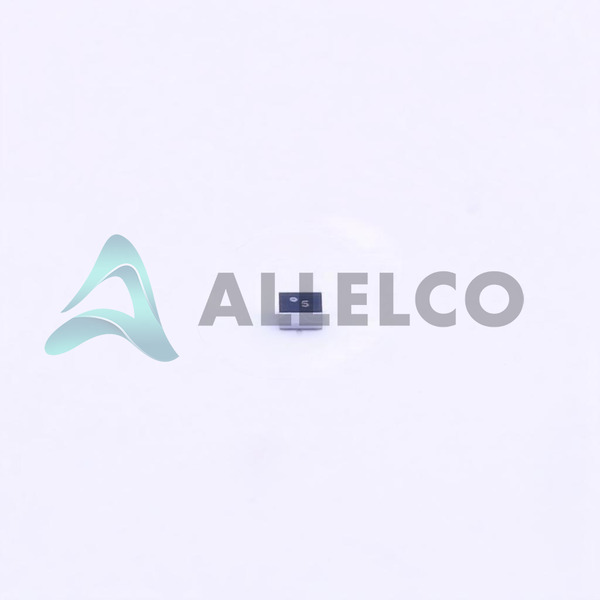

CSD23280F3T - Texas Instruments

Manufacturer Part Number

CSD23280F3T

Manufacturer

Texas Instruments

Introduction

Discrete Semiconductor Product

Transistor FET, MOSFET Single

Product Features and Performance

RoHS3 Compliant

3-PICOSTAR Package

FemtoFET Series

Tape & Reel (TR) Package

Operating Temperature: -55°C ~ 150°C (TJ)

Drain to Source Voltage (Vdss): 12 V

Vgs (Max): -6V

Rds On (Max) @ Id, Vgs: 116mOhm @ 400mA, 4.5V

MOSFET (Metal Oxide) Technology

Current Continuous Drain (Id) @ 25°C: 1.8A (Ta)

Input Capacitance (Ciss) (Max) @ Vds: 234 pF @ 6 V

Power Dissipation (Max): 500mW (Ta)

P-Channel FET Type

Vgs(th) (Max) @ Id: 950mV @ 250A

Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V

Gate Charge (Qg) (Max) @ Vgs: 1.23 nC @ 4.5 V

Surface Mount Mounting Type

Product Advantages

RoHS3 Compliant

Wide Temperature Range (-55°C ~ 150°C)

Low On-Resistance (116mOhm)

High Current Capability (1.8A)

Compact 3-PICOSTAR Package

Key Technical Parameters

Drain to Source Voltage (Vdss): 12 V

Vgs (Max): -6V

Rds On (Max) @ Id, Vgs: 116mOhm @ 400mA, 4.5V

Current Continuous Drain (Id) @ 25°C: 1.8A (Ta)

Input Capacitance (Ciss) (Max) @ Vds: 234 pF @ 6 V

Power Dissipation (Max): 500mW (Ta)

Vgs(th) (Max) @ Id: 950mV @ 250A

Gate Charge (Qg) (Max) @ Vgs: 1.23 nC @ 4.5 V

Quality and Safety Features

RoHS3 Compliant

Compatibility

Surface Mount

Application Areas

Discrete Semiconductor Applications

Product Lifecycle

Current product, no discontinuation or upgrades known.
