Manufacturer Part Number

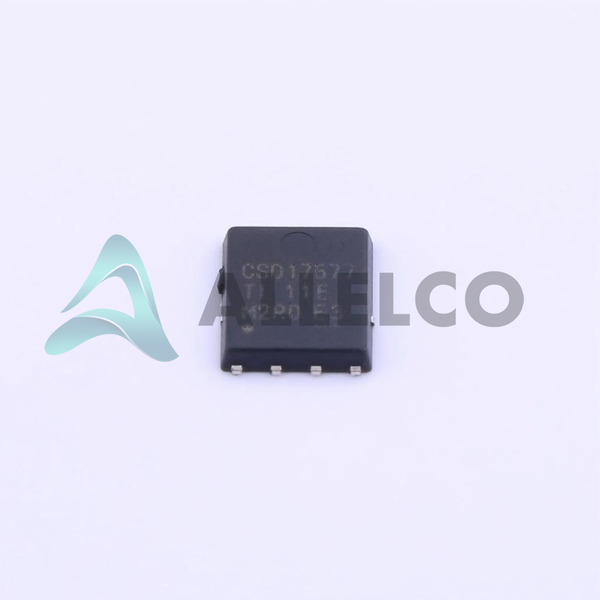

CSD17577Q5A
Manufacturer
Texas Instruments
Introduction
The CSD17577Q5A is a high-performance N-channel MOSFET transistor from Texas Instruments' NexFET series. It is designed for a wide range of power management and control applications.
Product Features and Performance
Low on-resistance (Rds(on)) of 4.2 mΩ at 18 A, 10 V
High current capability of up to 60 A continuous
Fast switching speed with low gate charge of 35 nC at 10 V
Wide operating temperature range of -55°C to 150°C
Small 8-VSONP (5x6) package
Product Advantages
Efficient power conversion with low conduction losses
Supports high current applications
Enables compact and high-density power circuit designs
Reliable operation in harsh environments
Key Technical Parameters
Drain to Source Voltage (Vdss): 30 V
Maximum Gate-Source Voltage (Vgs(max)): ±20 V
On-Resistance (Rds(on)): 4.2 mΩ @ 18 A, 10 V
Continuous Drain Current (Id): 60 A at 25°C
Input Capacitance (Ciss): 2310 pF @ 15 V
Power Dissipation: 3 W at 25°C (Ta), 53 W at 25°C (Tc)
Quality and Safety Features
RoHS3 compliant
Designed and manufactured to high-reliability standards
Compatibility
The CSD17577Q5A is compatible with a wide range of power management and control applications, including:
Switching power supplies
Motor drives
Telecommunications equipment
Industrial automation systems
Application Areas
Power management
Motor control
Telecommunications
Industrial automation
Automotive electronics
Product Lifecycle
The CSD17577Q5A is an actively supported product in Texas Instruments' NexFET series. There are no immediate plans for discontinuation, and replacement or upgrade options are available.
Key Reasons to Choose This Product
High efficiency and low power losses due to the low on-resistance
Ability to handle high currents up to 60 A for demanding applications
Fast switching speed and low gate charge for improved power conversion dynamics
Wide operating temperature range for reliable operation in harsh environments
Small package size for compact and high-density circuit designs
RoHS3 compliance for environmental responsibility
Backed by Texas Instruments' reputation for quality and reliability
