Manufacturer Part Number

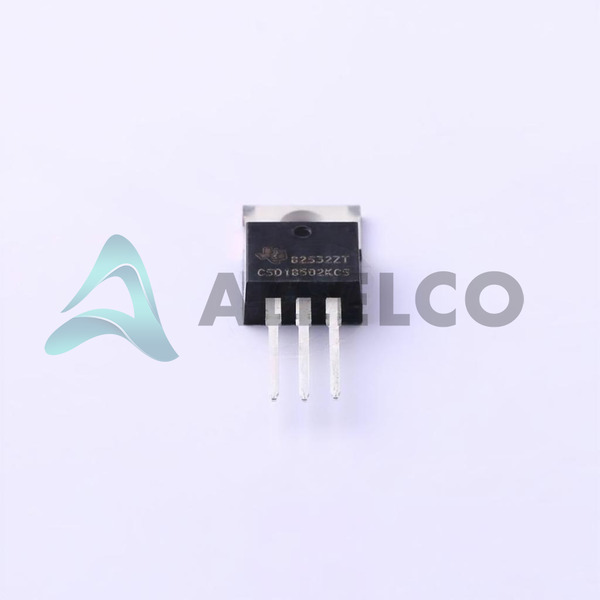

CSD18502KCS
Manufacturer
Texas Instruments
Introduction
High performance N-channel MOSFET transistor
Product Features and Performance
High current handling capability up to 100A continuous drain current
Low on-resistance of 2.9mOhm max
Wide operating voltage range up to 40V
High power dissipation capacity of 259W
Fast switching and low gate charge for efficient operation
Wide operating temperature range from -55°C to 175°C
Product Advantages
Excellent thermal performance and power handling
Efficient power conversion and control
Reliable and stable operation in demanding applications
Key Technical Parameters
Drain to Source Voltage (Vdss): 40V
Gate-Source Voltage (Vgs): ±20V
On-Resistance (Rds(on)): 2.9mOhm max @ 100A, 10V
Continuous Drain Current (Id): 100A
Input Capacitance (Ciss): 4680pF max @ 20V
Power Dissipation (Tc): 259W
Quality and Safety Features
RoHS3 compliant
TO-220-3 package for reliable thermal management
Designed and manufactured to high quality standards
Compatibility
Compatible with a wide range of power electronics and motor control applications
Application Areas
Switching power supplies
Motor drives
Inverters
Power converters
Industrial and automotive electronics
Product Lifecycle
This product is an active and widely used device
Replacements and upgrades are readily available from Texas Instruments
Key Reasons to Choose This Product
Excellent power handling and efficiency
Industry-leading performance in a compact package
Reliable and stable operation in demanding applications
Backed by the quality and support of Texas Instruments
