Manufacturer Part Number

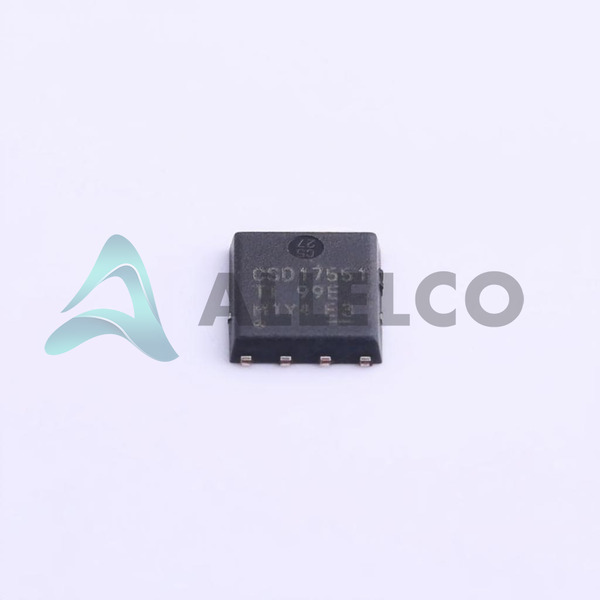

CSD17551Q5A
Manufacturer
Texas Instruments
Introduction
The CSD17551Q5A is a high-performance N-channel NexFET MOSFET from Texas Instruments. It is designed for various power conversion and control applications.
Product Features and Performance
30V Drain-to-Source Voltage (Vdss)
8mΩ On-Resistance (Rds(on)) at 11A, 10V
48A Continuous Drain Current (Id) at 25°C
Low Input Capacitance (Ciss) of 1272pF at 15V
3W Power Dissipation (Pd) at 25°C
Product Advantages
Excellent performance in terms of low on-resistance, high current capability, and low input capacitance
Suitable for high-frequency, high-efficiency power conversion applications
Efficient heat dissipation due to advanced package design
Key Technical Parameters
MOSFET Technology: N-Channel
Threshold Voltage (Vgs(th)): 2.2V at 250A
Gate Voltage (Vgs): ±20V
Operating Temperature Range: -55°C to 150°C
Quality and Safety Features
RoHS3 compliant
Suitable for reflow soldering
Compatibility
Compatible with various power conversion and control applications
Application Areas
Switch-mode power supplies
Motor drives
Lighting and industrial control systems
Automotive electronics
Product Lifecycle
Currently in production
No immediate plans for discontinuation
Replacement or upgrade options may be available in the future
Key Reasons to Choose This Product
Excellent performance characteristics, including low on-resistance, high current capability, and low input capacitance
Suitable for high-frequency, high-efficiency power conversion applications
Efficient heat dissipation due to advanced package design
Reliable and RoHS3 compliant
Compatibility with a wide range of power conversion and control applications
