Manufacturer Part Number

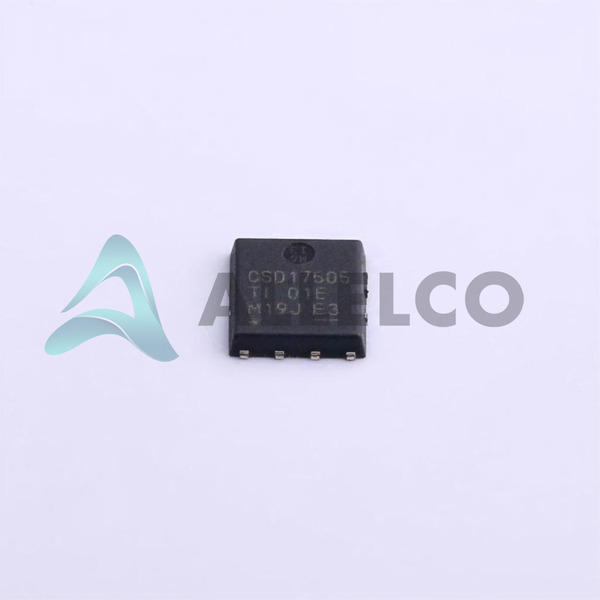

CSD17505Q5A
Manufacturer
Texas Instruments
Introduction
The CSD17505Q5A is a high-performance N-channel MOSFET transistor from Texas Instruments. It is part of the NexFET series and designed for a wide range of power management and switching applications.
Product Features and Performance
30V drain-to-source voltage (Vdss)
±20V gate-to-source voltage (Vgs)
5mOhm maximum on-resistance (Rds(on)) at 20A, 10V
24A continuous drain current (Id) at 25°C ambient temperature
100A continuous drain current (Id) at 25°C case temperature
1980pF maximum input capacitance (Ciss) at 15V
2W maximum power dissipation at 25°C ambient temperature
Fast switching performance
Product Advantages
Excellent on-resistance performance for high efficiency
High current capability for demanding applications
Compact 8-VSONP (5x6) package for space-constrained designs
RoHS3 compliant for environmental compliance
Key Technical Parameters
MOSFET technology
N-channel configuration
-55°C to 150°C operating temperature range
13nC maximum gate charge (Qg) at 4.5V
Quality and Safety Features
RoHS3 compliant
Robust design for reliable operation
Compatibility
The CSD17505Q5A is compatible with a wide range of power management and switching applications, including:
DC-DC converters
Motor drives
Power amplifiers
Lighting control
Battery chargers
Application Areas
Power management
Motor control
Audio amplifiers
Industrial automation
Consumer electronics
Product Lifecycle
The CSD17505Q5A is an active product in Texas Instruments' portfolio. Replacement or upgrade options may be available in the future as technology advances.
Several Key Reasons to Choose This Product
Excellent on-resistance performance for high efficiency
High current capability to handle demanding applications
Compact package for space-constrained designs
RoHS3 compliance for environmental regulations
Robust design for reliable operation
Compatibility with a wide range of power management and switching applications
