Manufacturer Part Number

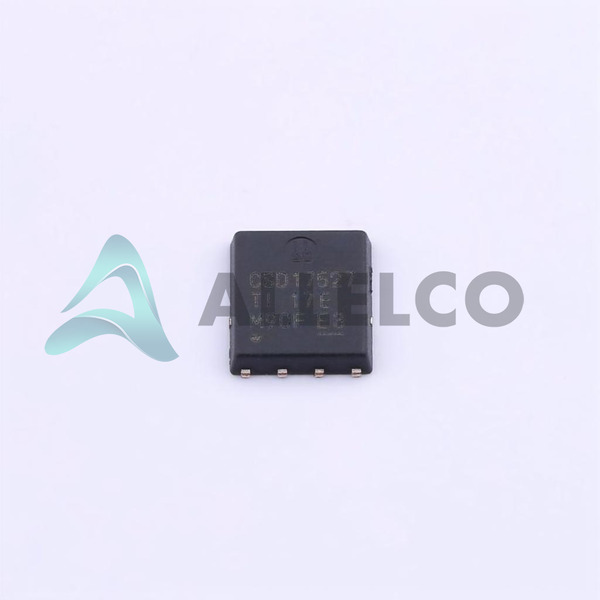

CSD17527Q5A
Manufacturer
Texas Instruments
Introduction
High-performance N-channel MOSFET transistor
Product Features and Performance
Optimized for high-frequency, high-efficiency power conversion applications
Extremely low on-resistance for low conduction losses
Fast switching and low gate charge for high-frequency operation
Compact 8-pin PowerTDFN package for high power density
Product Advantages
Excellent thermal performance
High efficiency and power density
Reliable and robust design
Key Technical Parameters
Drain-to-Source Voltage (Vdss): 30V
Maximum Gate-to-Source Voltage (Vgs): ±20V
On-Resistance (Rds(on)): 10.8mΩ @ 11A, 10V
Continuous Drain Current (Id): 65A @ 25°C
Input Capacitance (Ciss): 506pF @ 15V
Power Dissipation (Pd): 3W @ 25°C
Quality and Safety Features
RoHS3 compliant
Suitable for high-temperature operation (-55°C to 150°C)
Compatibility
Suitable for a wide range of power conversion applications
Application Areas
Switching power supplies
Power factor correction (PFC) circuits
DC-DC converters
Motor drives
Industrial and consumer electronics
Product Lifecycle
This product is currently in production and not near discontinuation
Replacement or upgrade options are available from Texas Instruments
Key Reasons to Choose This Product
Exceptional efficiency and power density
Reliable and robust performance
Optimized for high-frequency, high-efficiency power conversion
Compact and thermally efficient package
Supported by a trusted manufacturer (Texas Instruments)
