Manufacturer Part Number

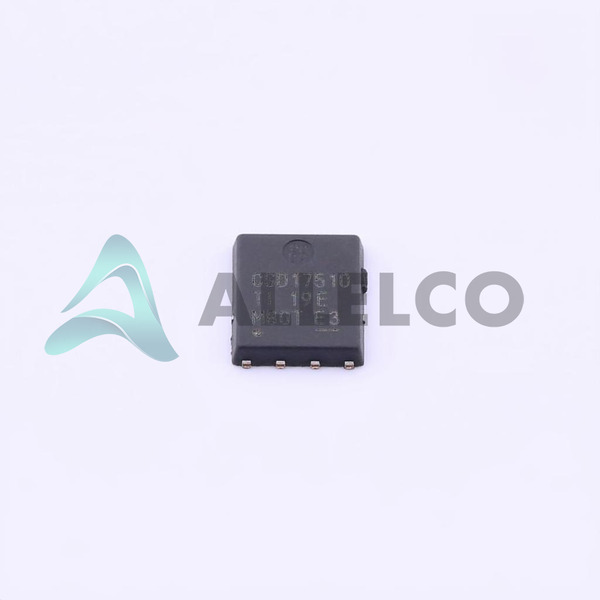

CSD17510Q5A
Manufacturer
Texas Instruments
Introduction
The CSD17510Q5A is a high-performance N-channel MOSFET transistor from Texas Instruments, designed for a wide range of power management and control applications.
Product Features and Performance
30V drain-to-source voltage rating
2mΩ maximum on-resistance at 20A, 10V
20A continuous drain current at 25°C ambient temperature
100A continuous drain current at 25°C case temperature
1250pF maximum input capacitance at 15V
3W maximum power dissipation at 25°C ambient temperature
-55°C to 150°C operating temperature range
Product Advantages
Excellent power efficiency due to low on-resistance
High current handling capability
Wide temperature range operation
Compact 8-VSONP package
Key Technical Parameters
Vdss: 30V
Vgs(max): ±20V
Rds(on) max: 5.2mΩ @ 20A, 10V
Id: 20A (Ta), 100A (Tc)
Ciss max: 1250pF @ 15V
Pd max: 3W (Ta)
Quality and Safety Features
RoHS3 compliant
Suitable for safety-critical applications
Compatibility
Designed for a wide range of power management and control applications
Application Areas
Power supplies
Motor drives
Inverters
Battery management systems
Industrial automation and control
Product Lifecycle
Active product, no discontinuation plans
Replacements and upgrades available
Key Reasons to Choose This Product
Excellent power efficiency and high current handling
Wide temperature range operation
Compact size and surface-mount package
Suitable for safety-critical applications
Availability of replacements and upgrades
