Manufacturer Part Number

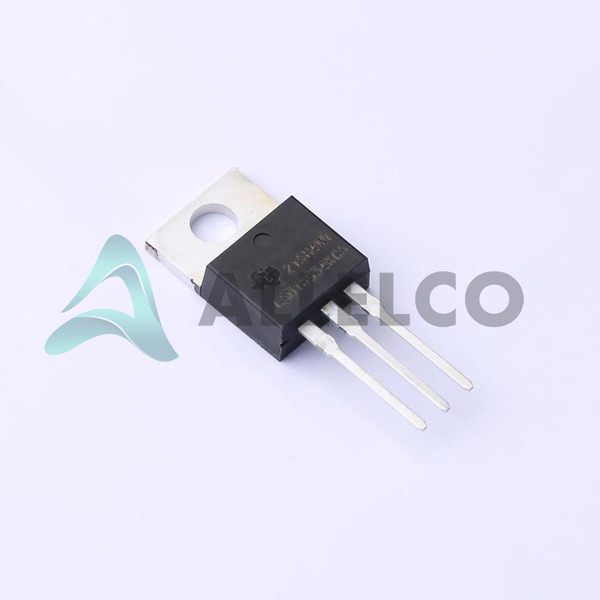

CSD18534KCS
Manufacturer
Texas Instruments
Introduction
High-performance N-Channel MOSFET transistor
Designed for efficient power conversion and control applications
Product Features and Performance
High current capability up to 100A
Low on-resistance of 9.5 mΩ
Wide operating temperature range of -55°C to 175°C
Fast switching speed and low gate charge for efficient operation
Robust and reliable design
Product Advantages
Excellent efficiency for power conversion applications
Suitable for high-current, high-power density designs
Reliable performance across wide temperature range
Key Technical Parameters
Drain-to-Source Voltage (Vdss): 60V
Gate-to-Source Voltage (Vgs): ±20V
Continuous Drain Current (Id): 45A (Ta), 100A (Tc)
Input Capacitance (Ciss): 1880 pF @ 30V
Power Dissipation (Tc): 107W
Quality and Safety Features
RoHS3 compliant
Robust TO-220-3 package for reliable operation
Compatibility
Compatible with a wide range of power conversion and control applications
Application Areas
Switched-mode power supplies
Motor drives
Industrial and automotive electronics
Telecommunications equipment
Product Lifecycle
Currently in production
Availability of replacements and upgrades within the NexFET series
Key Reasons to Choose This Product
Excellent efficiency and power density for power conversion applications
Reliable performance across wide temperature range
Robust and compact TO-220-3 package
Proven technology and support from Texas Instruments
