Manufacturer Part Number

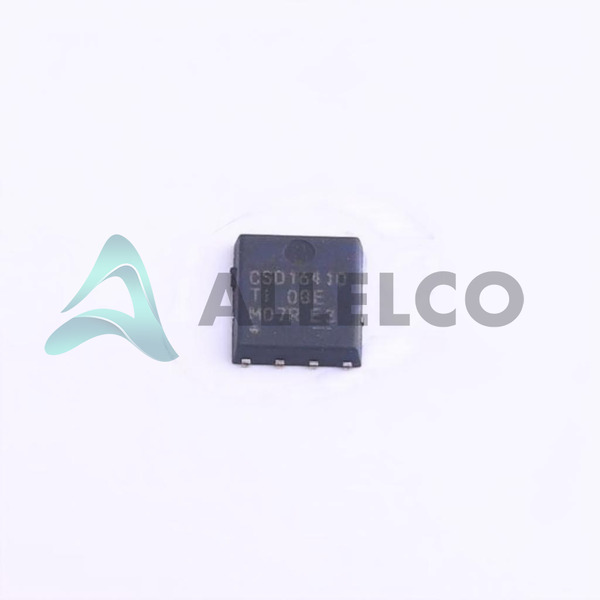

CSD16410Q5A
Manufacturer
Texas Instruments
Introduction
High-performance N-channel MOSFET transistor
Product Features and Performance
Low on-resistance for high efficiency
Fast switching speed
High current capability up to 16A continuous
Product Advantages
Excellent thermal performance
Compact 8-VSONP (5x6) surface mount package
Suitable for high-frequency and high-power applications
Key Technical Parameters
Drain-to-source voltage (Vdss): 25V
Maximum gate-to-source voltage (Vgs): +16V/-12V
On-resistance (Rds(on)): 8.5mΩ @ 17A, 10V
Continuous drain current (Id): 16A (Ta), 59A (Tc)
Input capacitance (Ciss): 740pF @ 12.5V
Power dissipation (max): 3W (Ta)
Quality and Safety Features
RoHS3 compliant
Suitable for high-temperature operation (-55°C to 150°C)
Compatibility
Suitable for a wide range of power management, motor control, and industrial applications
Application Areas
Power supplies
Motor drives
Industrial automation
Telecommunications equipment
Product Lifecycle
Currently in production
No known discontinuation plans
Key Reasons to Choose This Product
High efficiency and performance
Compact size and easy integration
Reliable operation in harsh environments
Suitable for high-frequency, high-power applications
