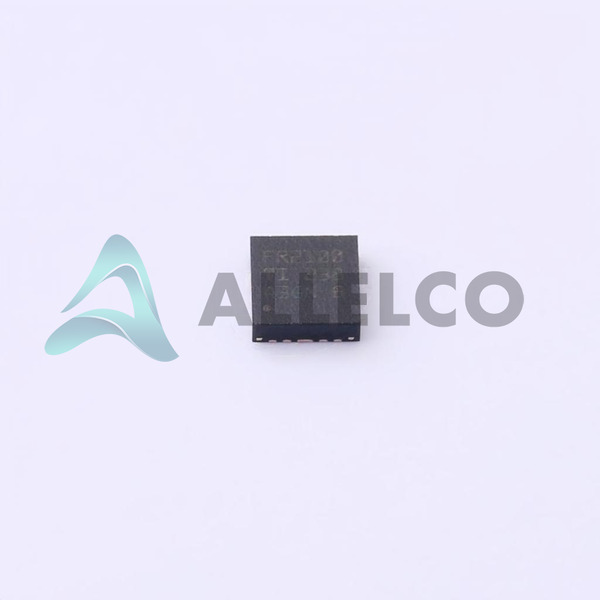

MSP430FR2100IRLLR - Texas Instruments

Manufacturer Part Number

MSP430FR2100IRLLR

Manufacturer

Texas Instruments

Introduction

The MSP430FR2100 is a low-power microcontroller unit (MCU) from Texas Instruments, designed for embedded applications that require ultra-low power consumption and fast wake-up times.

Product Features and Performance

16-bit RISC CPU core with 16 MHz maximum frequency

1 KB of FRAM (Ferroelectric Random Access Memory) program memory

512 bytes of FRAM data memory

8-channel, 10-bit analog-to-digital converter (ADC)

Integrated peripheral modules such as serial communication interfaces (UART, SPI, I2C), timers, and low-power modes

Ultra-low power consumption, with active mode current as low as 100 μA/MHz and standby mode current as low as 0.5 μA

Product Advantages

Extremely low power consumption for extended battery life in portable applications

Fast wake-up time from low-power modes for responsive user experience

Flexible FRAM memory for easy in-system programming and data logging

Integrated peripherals for efficient system design

Key Technical Parameters

Operating voltage range: 1.8V to 3.6V

Operating temperature range: -40°C to 85°C

FRAM program memory size: 1 KB

RAM size: 512 bytes

Analog-to-digital converter: 8-channel, 10-bit

Quality and Safety Features

RoHS3 compliant

Designed for reliable operation in industrial and automotive environments

Compatibility

Compatible with other MSP430 FRAM series microcontrollers

Can be used in a wide range of embedded applications

Application Areas

Portable and battery-powered devices

Sensor nodes and IoT applications

Industrial automation and control

Automotive electronics

Product Lifecycle

The MSP430FR2100 is a current product in the MSP430 FRAM series, with no known plans for discontinuation.

Upgrades and replacements may be available in the future as the MSP430 FRAM product line evolves.

Key Reasons to Choose This Product

Extremely low power consumption for extended battery life

Fast wake-up time from low-power modes for responsive systems

Flexible FRAM memory for easy in-system programming and data logging

Integrated peripheral modules for efficient system design

Reliable operation in industrial and automotive environments
