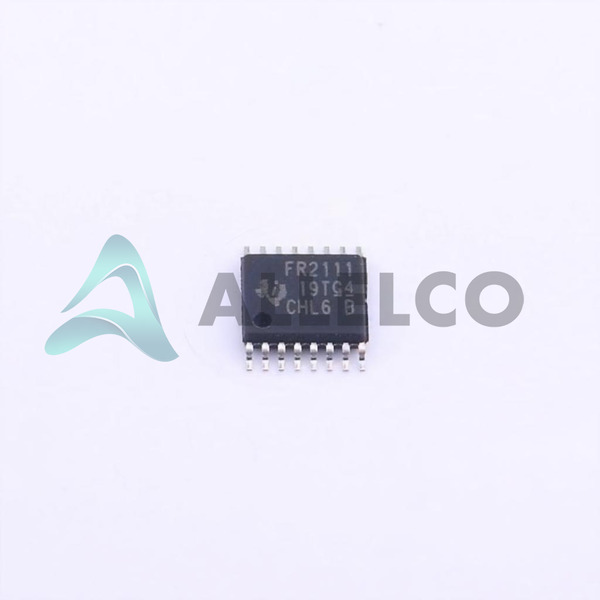

Image may be representation.
See specifications for product details.

~~Favorite~~

MSP430FR2111IPW16 - Texas Instruments

Manufacturer Part Number: MSP430FR2111IPW16

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430FR2111IPW16

ECAD Model

Parts Description: IC MCU 16BIT 3.75KB FRAM 16TSSOP

Detailed Description

Package: 16-TSSOP (0.173', 4.40mm Width)

Data sheet: MSP430FR4xx, MSP430FR2xx Family User Guide.pdf
MSP430FR2111, MSP430FR2110.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

In stock: 49720

Specifications

MSP430FR2111IPW16 Tech Specifications
Texas Instruments - MSP430FR2111IPW16 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430FR2111IPW16

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	16-TSSOP
Speed	16MHz
Series	MSP430™ FRAM
RAM Size	1K x 8
Program Memory Type	FRAM
Program Memory Size	3.75KB (3.75K x 8)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	16-TSSOP (0.173', 4.40mm Width)
Package	Tube

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	12
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	IrDA, SCI, SPI, UART/USART
Base Product Number	MSP430FR2111

Parts Introduction

Manufacturer Part Number

MSP430FR2111IPW16

Manufacturer

Texas Instruments

Introduction

Embedded microcontroller with 16-bit MSP430 CPU

Product Features and Performance

75KB program memory (FRAM)

1KB RAM

8-channel 10-bit ADC

IrDA, SCI, SPI, UART/USART connectivity

Internal oscillator

Brown-out detect/reset, POR, PWM, WDT peripherals

16MHz operating speed

Product Advantages

Low-power FRAM technology

Integrated peripherals for wide range of applications

Flexible connectivity options

Key Technical Parameters

16-bit MSP430 CPU

8V to 3.6V supply voltage

-40°C to 85°C operating temperature range

16-TSSOP package

Quality and Safety Features

RoHS3 compliant

16-TSSOP package for surface mount

Compatibility

Compatible with other MSP430 FRAM series microcontrollers

Application Areas

Embedded systems

Industrial automation

Portable devices

Sensor applications

Product Lifecycle

Currently available

Replacements or upgrades may be available within the MSP430 FRAM series

Key Reasons to Choose This Product

Low-power FRAM technology for energy-efficient operation

Integrated peripherals for versatile functionality

Flexible connectivity options for diverse applications

Wide operating temperature range for industrial use

Surface mount package for compact design

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430FR2111IPW16

Product Attribute
Part Number	MSP430FR2111IPW16	MSP430FR2033IG48	MSP430FR2155TRHAR	MSP430FR2153TRSMR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 105°C (TA)	-40°C ~ 105°C (TA)
RAM Size	1K x 8	2K x 8	4K x 8	2K x 8
Connectivity	IrDA, SCI, SPI, UART/USART	I²C, IrDA, SCI, SPI, UART/USART	I²C, IrDA, SPI, UART/USART	I²C, IrDA, SPI, UART/USART
Oscillator Type	Internal	Internal	Internal	Internal
Supplier Device Package	16-TSSOP	48-TSSOP	40-VQFN (6x6)	32-VQFN (4x4)
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
Package / Case	16-TSSOP (0.173', 4.40mm Width)	48-TFSOP (0.240', 6.10mm Width)	40-VFQFN Exposed Pad	32-VFQFN Exposed Pad
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Program Memory Size	3.75KB (3.75K x 8)	15.5KB (15.5K x 8)	32KB (32K x 8)	16KB (16K x 8)
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package	Tube	Tube	Tape & Reel (TR)	Tape & Reel (TR)
Program Memory Type	FRAM	FRAM	FRAM	FRAM
Speed	16MHz	16MHz	24MHz	24MHz
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT
Base Product Number	MSP430FR2111	MSP430FR2033	MSP430FR2155	MSP430FR2153
Data Converters	A/D 8x10b	A/D 8x10b	A/D 10x12b	A/D 8x12b SAR
EEPROM Size	-	-	-	-
Number of I/O	12	44	36	28
Series	MSP430™ FRAM	MSP430™ FRAM	MSP430™ FRAM	MSP430™ FRAM

MSP430FR2111IPW16 Datasheet PDF

Download MSP430FR2111IPW16 pdf datasheets and Texas Instruments documentation for MSP430FR2111IPW16 - Texas Instruments.

Datasheets: MSP430FR4xx, MSP430FR2xx Family User Guide.pdf
PCN Packaging: Symbolization Update 14/Feb/2023.pdf
Design Resources: EEPROM Emulation using FRAM Technology.pdf
PCN Design/Specification: MSP430FR2 18/Feb/2020.pdf MSP430FR2000/MSP430FR2111 17/Sep/2018.pdf
Errata: MSP430FR2111 Errata.pdf
HTML Datasheet: MSP430FR2111, MSP430FR2110.pdf
