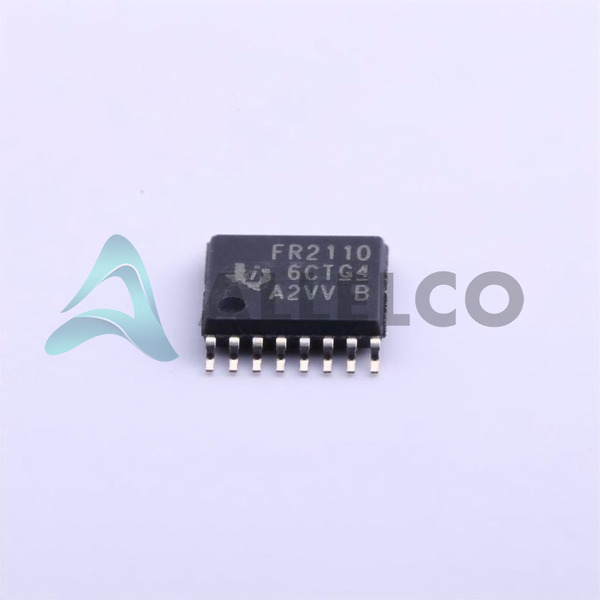

Image may be representation.
See specifications for product details.

~~Favorite~~

MSP430FR2110IPW16R - Texas Instruments

Manufacturer Part Number: MSP430FR2110IPW16R

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430FR2110IPW16R

ECAD Model

Parts Description: IC MCU 16BIT 2KB FRAM 16TSSOP

Detailed Description

Package: 16-TSSOP (0.173', 4.40mm Width)

Data sheet: MSP430FR4xx, MSP430FR2xx Family User Guide.pdf
MSP430FR2111, MSP430FR2110.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

In stock: 79960

Specifications

MSP430FR2110IPW16R Tech Specifications
Texas Instruments - MSP430FR2110IPW16R technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430FR2110IPW16R

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	16-TSSOP
Speed	16MHz
Series	MSP430™ FRAM
RAM Size	1K x 8
Program Memory Type	FRAM
Program Memory Size	2KB (2K x 8)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	16-TSSOP (0.173', 4.40mm Width)
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	12
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, SCI, SPI, UART/USART
Base Product Number	MSP430FR2110

Parts Introduction

Manufacturer Part Number

MSP430FR2110IPW16R

Manufacturer

Texas Instruments

Introduction

Low-Power Microcontroller Designed for Embedded Systems

Product Features and Performance

16-Bit MSP430 CPU16 Core

Speed of 16MHz

Connectivity Includes I2C, SCI, SPI, UART/USART

Peripherals Comprise Brown-out Detect/Reset, POR, PWM, WDT

12 Input/Output Ports

2KB FRAM Program Memory

1KB RAM

A/D Converters: 8-Channel, 10-Bit

Internal Oscillator

Product Advantages

Ultra-Low Power Consumption

Fast Write and Read Operations with FRAM

Robust Serial Communication Options

Integrated Analog-to-Digital Converters

Key Technical Parameters

Program Memory Size: 2KB

RAM Size: 1KB

Voltage Supply: 1.8V to 3.6V

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Over-Temperature Protection

Voltage Brown-out Reset

Watchdog Timer for System Integrity

Compatibility

Standard TSSOP-16 Packaging

SPI/I2C Compatible for Easy Integration

Application Areas

Consumer Electronics

Industrial Control Systems

Automotive

Internet of Things (IoT) Devices

Product Lifecycle

Currently Active

Not Nearing Discontinuation

Availability of Replacements or Upgrades

Several Key Reasons to Choose This Product

Efficient Power Management for Battery-Operated Devices

FRAM Enables High-Endurance and Faster Memory Operations

Versatile Serial Interfaces for Simplified Device Communication

Integrated ADCs for Sensor Data Acquisition

Reliable Operation in Extreme Temperature Conditions

Consistent Product Availability and Support from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430FR2110IPW16R

Product Attribute
Part Number	MSP430FR2110IPW16R	MSP430FG479IPNR	MSP430FR2100IRLLR	MSP430FR2153TRSMT
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Program Memory Size	2KB (2K x 8)	60KB (60K x 8 + 256B)	1KB (1K x 8)	16KB (16K x 8)
Supplier Device Package	16-TSSOP	80-LQFP (12x12)	24-VQFN (3x3)	32-VQFN (4x4)
EEPROM Size	-	-	-	-
Package / Case	16-TSSOP (0.173', 4.40mm Width)	80-LQFP	24-VFQFN Exposed Pad	32-VFQFN Exposed Pad
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 105°C (TA)
Connectivity	I²C, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART	IrDA, SCI, SPI, UART/USART	I²C, IrDA, SPI, UART/USART
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Series	MSP430™ FRAM	MSP430x4xx	MSP430™ FRAM	MSP430™ FRAM
Speed	16MHz	8MHz	16MHz	24MHz
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
Data Converters	A/D 8x10b	A/D 5x16b; D/A 2x12b	A/D 8x10b	A/D 8x12b SAR
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Number of I/O	12	48	12	28
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, LCD, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT
Base Product Number	MSP430FR2110	MSP430FG479	MSP430FR2100	MSP430FR2153
RAM Size	1K x 8	2K x 8	512 x 8	2K x 8
Program Memory Type	FRAM	FLASH	FRAM	FRAM
Oscillator Type	Internal	Internal	Internal	Internal

MSP430FR2110IPW16R Datasheet PDF

Download MSP430FR2110IPW16R pdf datasheets and Texas Instruments documentation for MSP430FR2110IPW16R - Texas Instruments.

Datasheets: MSP430FR4xx, MSP430FR2xx Family User Guide.pdf
PCN Design/Specification: Design 22/Feb/2022.pdf MSP430FR2 18/Feb/2020.pdf
PCN Packaging: Symbolization Update 14/Feb/2023.pdf
HTML Datasheet: MSP430FR2111, MSP430FR2110.pdf
PCN Assembly/Origin: 2.73KHz.pdf
Errata: MSP430FR2110 Errata.pdf
