Manufacturer Part Number

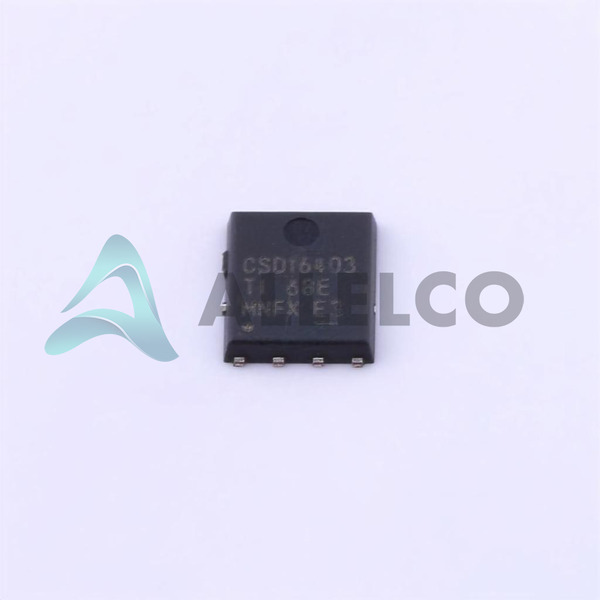

CSD16403Q5A
Manufacturer
Texas Instruments
Introduction
High-performance power MOSFET in a small, thermally-enhanced package
Product Features and Performance
Low on-resistance for high efficiency
High current capability up to 100A
Wide operating temperature range of -55°C to 150°C
Low gate charge for fast switching
Optimized for high-frequency and high-density power conversion applications
Product Advantages
Excellent thermal performance
Compact and space-saving package
High reliability and robustness
Key Technical Parameters
Drain-to-Source Voltage (Vdss): 25V
Gate-to-Source Voltage (Vgs): +16V/-12V
On-Resistance (Rds(on)): 2.8mΩ @ 20A, 10V
Continuous Drain Current (Id): 28A (Ta), 100A (Tc)
Input Capacitance (Ciss): 2660pF @ 12.5V
Power Dissipation (Pd): 3.1W (Ta)
Quality and Safety Features
RoHS3 compliant
Suitable for high-reliability applications
Compatibility
Compatible with a wide range of power conversion and control applications
Application Areas
Switching power supplies
Motor drives
Industrial and consumer electronics
Automotive electronics
Product Lifecycle
Currently in production
Replacements or upgrades may be available in the future
Key Reasons to Choose This Product
High efficiency and power density
Excellent thermal management
Compact and space-saving design
Reliable and robust performance
Suitable for a wide range of power conversion applications
