Manufacturer Part Number

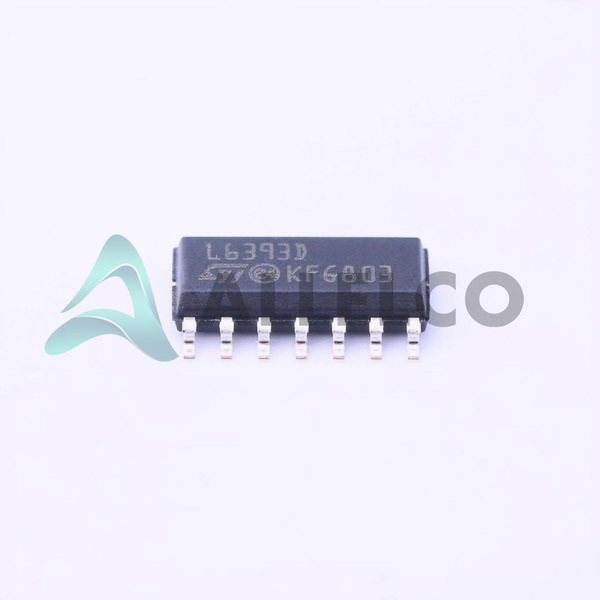

L6393D
Manufacturer
stmicroelectronics
Introduction
The L6393D is a high-performance, dual-channel IGBT and N-Channel MOSFET gate driver IC from STMicroelectronics. It is designed to provide efficient and reliable control of power switching devices in a variety of industrial and consumer applications.
Product Features and Performance
Dual-channel gate driver with independent control of high-side and low-side switches
Supports both IGBT and N-Channel MOSFET power devices
Wide supply voltage range of 10V to 20V
Logic-compatible input signals with VIL of 1.1V and VIH of 1.9V
High-side driver capable of up to 600V operation
Peak output current of 290mA (source) and 430mA (sink)
Fast rise and fall times of 75ns and 35ns, respectively
Operating temperature range of -40°C to 125°C (TJ)
Surface mount package (14-SOIC)
Product Advantages
Efficient and reliable control of power switching devices
Versatile support for both IGBT and N-Channel MOSFET technologies
Wide operating voltage and temperature ranges
Fast switching capabilities for high-performance applications
Compact surface mount package for space-constrained designs
Key Reasons to Choose This Product
Proven performance and reliability from a trusted manufacturer, STMicroelectronics
Flexible design that can be utilized in a wide range of power electronics applications
High-speed switching and output drive capabilities to optimize system efficiency
Robust operating parameters to withstand demanding environmental conditions
Quality and Safety Features
Designed and manufactured to STMicroelectronics' high-quality standards
Extensive safety and protection features to ensure reliable operation
Compliance with relevant industry standards and regulations
Compatibility
The L6393D is compatible with a wide range of IGBT and N-Channel MOSFET power devices, making it suitable for use in various power electronics applications.
Application Areas
Motor drives
Power inverters
Switching power supplies
Industrial automation and control systems
Household appliances
Renewable energy systems
Product Lifecycle
The L6393D is an active, in-production product from STMicroelectronics. There are no current plans for product discontinuation. For customers looking for alternative or equivalent models, the L6395D is a similar gate driver IC that may be considered. If you have any further questions, please contact our website's sales team for more information.
