Manufacturer Part Number
TS5A3166YZPR
Manufacturer
Texas Instruments
Introduction
High-speed, low-voltage single-pole single-throw (SPST) analog switch
Product Features and Performance
SPST NO (Normally Open) switch configuration
Single 1:1 multiplexer/demultiplexer circuit
900mOhm maximum on-state resistance
65V ~ 5.5V single supply voltage
Fast switching times of 7ns for turn-on and 11.5ns for turn-off
High -3db bandwidth of 200MHz
Low charge injection of 1pC
Low channel capacitance of 19pF (CS(off)) and 18pF (CD(off))
Maximum leakage current of 20nA (IS(off))
Suitable for operating temperatures range from -40°C to 85°C
Product Advantages
Compatible with a wide range of supply voltages
Fast switching suitable for high-speed applications
Low on-state resistance for better signal integrity
High bandwidth capable of handling high-frequency signals
Key Technical Parameters
On-State Resistance (Max): 900mOhm
Voltage Supply Range: 1.65V ~ 5.5V
Switching Times (Ton/Toff): 7ns/11.5ns
Bandwidth: 200MHz
Charge Injection: 1pC
Leakage Current (Max): 20nA
Operating Temperature Range: -40°C ~ 85°C
Quality and Safety Features
Robust construction for a wide range of temperatures
Compatibility
Compatible with various signal levels due to its wide supply voltage range
Application Areas
Signal routing in audio, video, and data communication systems
Data acquisition systems
Test equipment
Portable electronics
Product Lifecycle
Currently active with no indication of nearing discontinuation
Availability of replacements or upgrades to be determined as per Texas Instruments' product roadmap
Several Key Reasons to Choose This Product
High-speed operation for real-time signal processing
Low power consumption suitable for battery-powered devices
Precision signal handling due to low charge injection and capacitive loading
Wide operating temperature range perfect for industrial applications

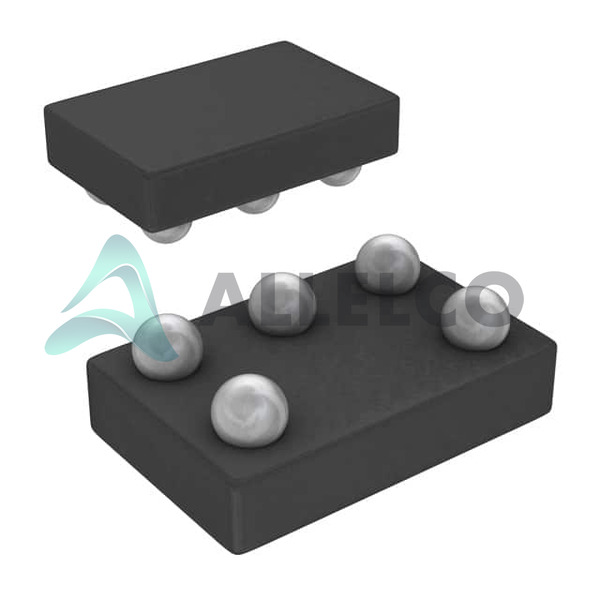

Simplifies PCB design with a compact 5-DSBGA (1.4x0.9) surface mount package
