TS5A3359YZPR - Texas Instruments

Manufacturer Part Number

TS5A3359YZPR

Manufacturer

Texas Instruments

Introduction

The TS5A3359YZPR is an SP3T (Single Pole Triple Throw) analog switch designed for signal routing applications.

Product Features and Performance

Single SP3T configuration

On-State Resistance: 900mOhm max

Voltage Supply, Single: 1.65V to 5.5V

Switch Time: 21ns (Ton), 10.5ns (Toff)

-3dB Bandwidth: 75MHz

Charge Injection: 20pC

Channel Capacitance: 18pF (CS(off)), 54pF (CD(off))

Current Leakage: 20nA max

Product Advantages

Low on-state resistance for reduced signal attenuation

High bandwidth suitable for video and audio applications

Low charge injection for minimal signal distortion

Energy-efficient operation compatible with low-voltage supplies

Key Technical Parameters

Switch Circuit: SP3T

Multiplexer/Demultiplexer Circuit: 3:1

Number of Circuits: 1

Channel-to-Channel Matching (ΔRon): 100mOhm

Crosstalk: -64dB @ 1MHz

Quality and Safety Features

Extended operating temperature range: -40°C to 85°C

High crosstalk immunity for signal integrity

Compatibility

Compatible with a wide range of supply voltages (1.65V ~ 5.5V)

Application Areas

Telecommunications

Data acquisition systems

Consumer electronics

Audio and video signal routing

Product Lifecycle

Active status with ongoing manufacturer support

Several Key Reasons to Choose This Product

Optimized for high-speed switching applications

Versatile for use with multiple signal types

Low power consumption for battery-powered devices

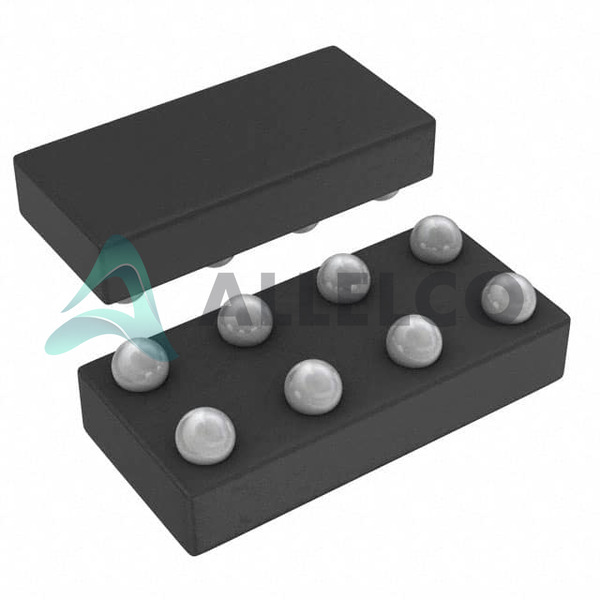

Compact 8-XFBGA, DSBGA package for space-saving design

Lead-free and RoHS compliant for environmental considerations
