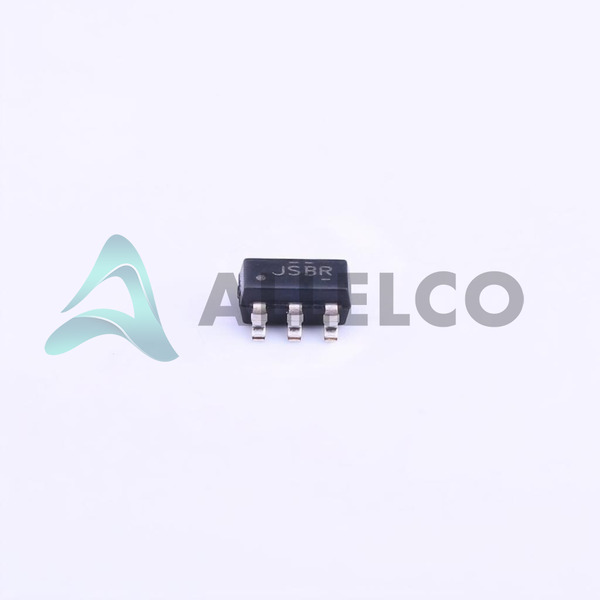

TS5A4595DBVR - Texas Instruments

Manufacturer Part Number

TS5A4595DBVR

Manufacturer

Texas Instruments

Introduction

The TS5A4595 is an SPST analog switch designed for 2-V to 5.5-V single supply systems.

Product Features and Performance

Single pole single throw normally closed switch

Low on-state resistance of 8 Ohm

Maximum switch time of 17ns for turn-on, 14ns for turn-off

High -3db Bandwidth of 450MHz

Charge Injection of 2pC

Channel Capacitance of 6.5pF off-state

Low leakage current of 500pA max

Product Advantages

Energy-efficient low power consumption

Precision signal switching with minimal charge injection and high bandwidth

Compact SC-74A, SOT-753 package for space-sensitive applications

Key Technical Parameters

On-State Resistance (Max): 8Ohm

Voltage - Supply, Single (V+): 2V ~ 5.5V

Switch Time (Max): 17ns (Ton), 14ns (Toff)

-3db Bandwidth: 450MHz

Channel Capacitance (CS(off), CD(off)): 6.5pF

Current - Leakage (IS(off)) (Max): 500pA

Quality and Safety Features

Operating Temperature range from -40°C to 85°C

Reliable performance ensured by Texas Instruments' rigorous quality standards

Compatibility

Compatible with single supply systems ranging from 2V to 5.5V

Application Areas

Telecommunications

Data acquisition systems

Signal routing

Audio and video switching

Product Lifecycle

Active product status, not nearing discontinuation

Availability of replacements and upgrades is likely given Texas Instruments' commitment to product longevity

Several Key Reasons to Choose This Product

High-performance analog switch with low on-state resistance optimizes signal integrity

Efficient switching times suitable for high-frequency applications

Ultra-low power consumption for battery-powered devices

Versatile supply voltage range fits various system needs

Robust operating temperature range suitable for industrial applications

Renowned manufacturer Texas Instruments assures quality and reliability

Compact packaging suitable for portable electronic devices
