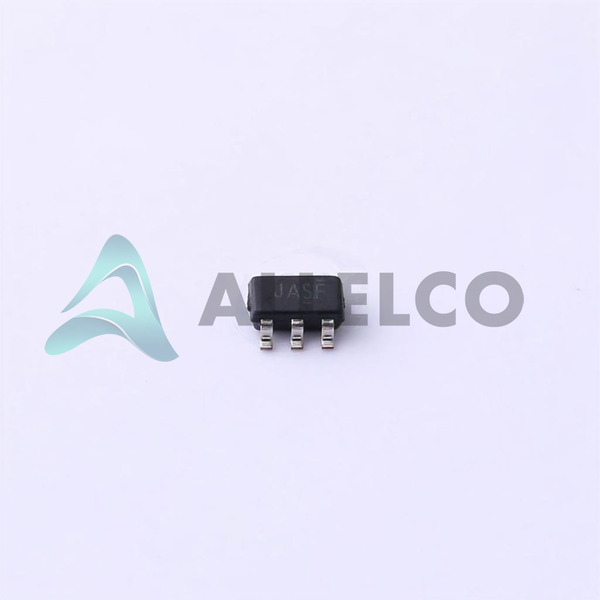

TS5A3166DBVRG4 - Texas Instruments

Manufacturer Part Number

TS5A3166DBVRG4

Manufacturer

Texas Instruments

Introduction

The TS5A3166DBVRG4 is a single-pole single-throw analog switch designed for analog signal switching applications.

Product Features and Performance

SPST - NO Configuration

1:1 Multiplexer/Demultiplexer Circuit

Single Channel

On-State Resistance Max of 900mOhm

Supports 1.65V to 5.5V Supply Voltage

Switch Time Max of 7ns (Ton), 11.5ns (Toff)

-3dB Bandwidth of 200MHz

Charge Injection of 1pC

Channel Capacitance of 19pF (CS(off)), 18pF (CD(off))

Current Leakage Max of 20nA

Product Advantages

Low on-state resistance for higher signal integrity

Fast switching times suitable for high-speed applications

Wide bandwidth supports high-frequency signals

Key Technical Parameters

On-State Resistance: 900mOhm

Voltage - Supply, Single: 1.65V ~ 5.5V

Switch Time: 7ns, 11.5ns

-3dB Bandwidth: 200MHz

Charge Injection: 1pC

Current - Leakage: 20nA

Operating Temperature Range: -40°C ~ 85°C

Quality and Safety Features

Operates across a wide temperature range ensuring reliability in varying environments

Compatibility

Compatible with various supply voltages between 1.65V and 5.5V

Surface Mount, fitting in SC-74A, SOT-753 footprint

Application Areas

Analog signal routing

Audio and video signal switching

Data acquisition systems

Communication systems

Product Lifecycle

Discontinued at Digi-Key

May require confirmation if still available or if replacements exist

Several Key Reasons to Choose This Product

Texas Instruments' reputation for high-quality components

Low on-state resistance preserves signal fidelity

Fast switching capability ideal for high-speed applications

Broad -3dB bandwidth accommodates a variety of signals

Low charge injection minimizes signal disturbance

Operational over wide temperature and voltage ranges allowing for versatile usage
