Manufacturer Part Number

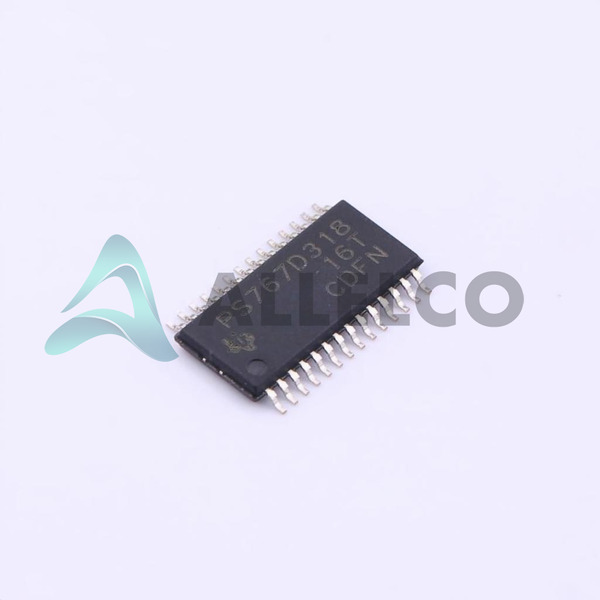

TPS767D318PWP
Manufacturer
Texas Instruments
Introduction
The TPS767D318PWP is a dual-output, low-dropout (LDO) voltage regulator designed for power-sensitive applications, providing a stable and efficient power supply.
Product Features and Performance
Dual output voltages: 1.8V and 3.3V
Maximum input voltage: 10V
Maximum output current: 1A
Low dropout voltage: 0.58V at 1A load
Power supply rejection ratio (PSRR): 60dB at 1kHz
Control features include Enable and Reset
Protection features: Over Current, Over Temperature, Reverse Polarity
Product Advantages
Provides stable multi-output voltage levels
High efficiency with low dropout performance
Compact 28-PowerTSSOP package suitable for surface mounting
Enhanced circuit protection improves product reliability
Key Technical Parameters
Input Voltage (Max): 10V
Output Voltage (Min/Fixed): 1.8V, 3.3V
Current Output: 1A
Dropout Voltage (Max): 0.58V @ 1A
Quiescent Current (Iq): 125 µA
Quality and Safety Features
Over Current Protection
Over Temperature Protection
Reverse Polarity Protection
Compatibility
Compatible with various microcontrollers and digital systems requiring 1.8V or 3.3V input
Application Areas
Consumer electronics
Telecommunications
Computing devices
Portable battery-powered devices
Product Lifecycle
Status: Active
Not nearing discontinuation
Replacement and upgrade options available
Several Key Reasons to Choose This Product
Dual regulated outputs facilitate powering multiple components
Low dropout voltage ensures efficient operation even at lower input voltages
High reliability with comprehensive protection features
Suitable for a wide range of operating temperatures from -40°C to 125°C
Surface mount package allows for efficient use of PCB space
