HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS76801QDR

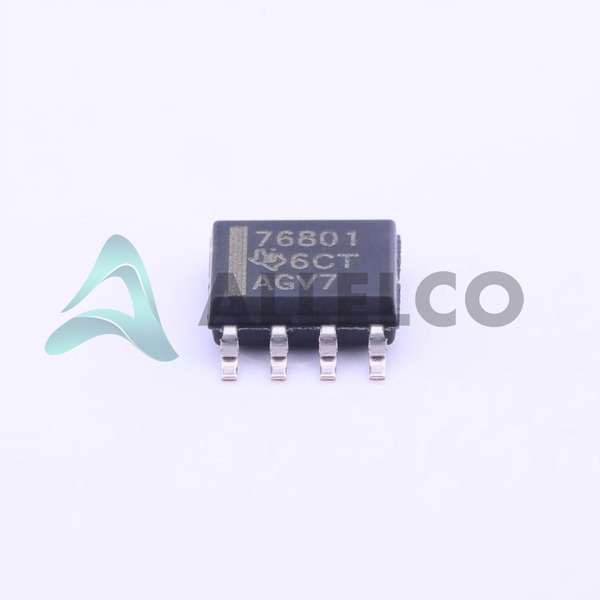

TPS76801QDR Image
TPS76801QDR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS76801QDR - Texas Instruments

Manufacturer Part Number
TPS76801QDR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS76801QDR
ECAD Model
Parts Description
IC REG LINEAR POS ADJ 1A 8SOIC
Detailed Description
Package
8-SOIC (0.154", 3.90mm Width)
Data sheet
TPS76827QPWP.pdf
TPS76827QPWP.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 15219

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS76801QDR Tech Specifications
Texas Instruments - TPS76801QDR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS76801QDR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) -
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 5.5V
Voltage - Input (Max) 10V
Supplier Device Package 8-SOIC
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity
Package / Case 8-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
PSRR 60dB (1kHz)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Quiescent (Iq) 125 µA
Current - Output 1A
Control Features Enable, Power Good
Base Product Number TPS76801

Parts Introduction

Manufacturer Part Number

TPS76801QDR

Manufacturer

Texas Instruments

Introduction

The TPS76801QDR is a high-performance, low-dropout (LDO) linear voltage regulator from Texas Instruments.

Product Features and Performance

Adjustable output voltage from 1.2V to 5.5V

1A output current capability

125μA quiescent current

60dB power supply rejection ratio (PSRR) at 1kHz

Overload, over-temperature, and reverse polarity protection

Product Advantages

Excellent line and load regulation

High accuracy and stability

Robust protection features

Small 8-SOIC package

Key Technical Parameters

Operating temperature range: -40°C to 125°C

Input voltage range: Up to 10V

Output voltage range: 1.2V to 5.5V

Output current: 1A

Quality and Safety Features

RoHS3 compliant

Overload, over-temperature, and reverse polarity protection

Compatibility

Suitable for a wide range of applications requiring a regulated voltage supply

Application Areas

Portable electronics

Industrial equipment

Automotive systems

Power supplies

Product Lifecycle

Currently in production

No known discontinuation or replacement plans

Several Key Reasons to Choose This Product

Excellent performance and reliability

Robust protection features for increased safety and reliability

Wide operating temperature range and compatibility

Compact 8-SOIC package for efficient board space utilization

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS76801QDR

Product Attribute TPS76801QDR TPS76801QPWPRG4Q1 TPS76801QD TPS767D325PWPR
Part Number TPS76801QDR TPS76801QPWPRG4Q1 TPS76801QD TPS767D325PWPR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package Tape & Reel (TR) Tape & Reel (TR) Tube Tape & Reel (TR)
PSRR 60dB (1kHz) 60dB (1kHz) 60dB (1kHz) 60dB (1kHz)
Voltage Dropout (Max) - - - 0.58V @ 1A
Series - Automotive, AEC-Q100 - -
Base Product Number TPS76801 TPS76801 TPS76801 TPS767D325
Control Features Enable, Power Good Enable, Power Good Enable, Power Good Enable, Reset
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Current - Output 1A 1A 1A 1A
Current - Quiescent (Iq) 125 µA 125 µA 125 µA 125 µA
Package / Case 8-SOIC (0.154", 3.90mm Width) 20-PowerTSSOP (0.173", 4.40mm Width) 8-SOIC (0.154', 3.90mm Width) 28-PowerTSSOP (0.173", 4.40mm Width)
Voltage - Output (Max) 5.5V 5.5V 5.5V -
Output Type Adjustable Adjustable Adjustable Fixed
Output Configuration Positive Positive Positive Positive
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Number of Regulators 1 1 1 2
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Voltage - Output (Min/Fixed) 1.2V 1.2V 1.2V 2.5V, 3.3V
Voltage - Input (Max) 10V 10V 10V 10V
Supplier Device Package 8-SOIC 20-HTSSOP 8-SOIC 28-HTSSOP
