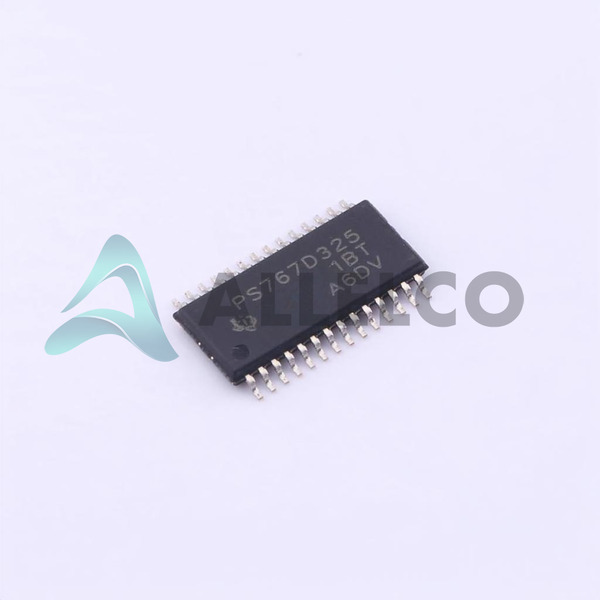

TPS767D325PWPR - Texas Instruments

Manufacturer Part Number

TPS767D325PWPR

Manufacturer

Texas Instruments

Introduction

LDO Voltage Regulator with Dual Outputs

Product Features and Performance

Dual Output Voltages: 2.5V and 3.3V

Low Dropout Voltage: 0.58V at 1A Load

Maximum Input Voltage: 10V

Current Quiescent: 125 µA

Power Supply Rejection Ratio: 60dB at 1kHz

Enable and Reset Control Features

Protection Against Over-Current and Over-Temperature

Reverse Polarity Protection

Compatible with Surface Mount Technology

Product Advantages

High Output Voltage Accuracy

Stable with Low ESR Capacitors

Output Discharge Function

Fast Transient Response

Key Technical Parameters

Output Current: 1 Ampere

Number of Regulators: 2

Operating Temperature Range: -40°C to 125°C

Mounting Type: Surface Mount

Quality and Safety Features

Over Current and Over Temperature Protections

Thermal and Short Circuit Protection

Meets JEDEC Moisture Sensitivity Level 2 Standards

Compatibility

Designed for Use in Surface Mounted Technology (SMT)

Accommodates a Variety of Capacitors to Optimize Performance

Compatible with Digital Signal Processor (DSP) and Microcontroller (MCU) Core Supplies

Application Areas

Consumer Electronics

Telecommunication Systems

Data Processing Systems

Portable/Battery-Powered Equipment

Product Lifecycle

Current Production Status: Active

Not Nearing Discontinuation

Availability of Replacements or Upgrades Not Specified

Several Key Reasons to Choose This Product

Efficient Power Regulation for Extended Battery Life

Compact 28-PowerTSSOP Package Saves PCB Space

Dual Outputs Allow for Versatile Application Use

High PSRR for Noise Sensitive Analog Circuits

Comprehensive Protection Ensuring Long Term Reliability
