Manufacturer Part Number

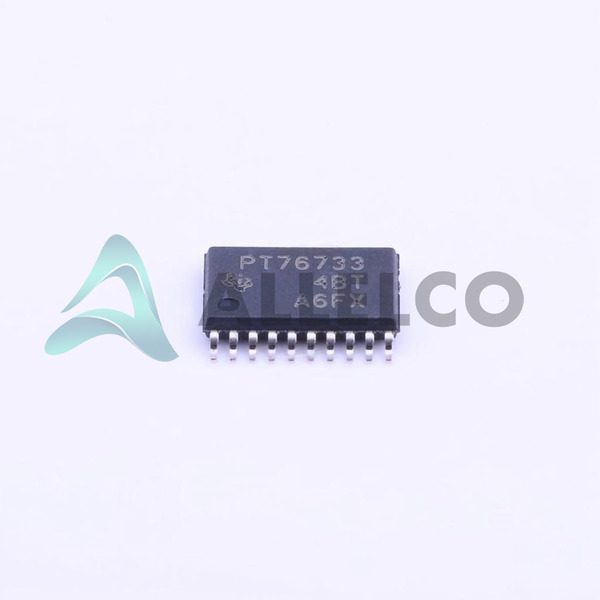

TPS76733QPWPR
Manufacturer
Texas Instruments
Introduction
Low dropout voltage regulator optimized for fast transient response
Product Features and Performance
Fixed 3.3V output voltage
Low dropout voltage of 0.58V at 1A load
Output current capability of 1A
Current - Quiescent (Iq) of 125 µA
Power supply rejection ratio (PSRR) of 60dB at 1kHz
Integrated over current and over temperature protection
Reverse polarity protection
Enable and reset control features
Product Advantages
High output voltage accuracy
Stable with low ESR capacitors
Fast transient response suitable for a variety of loads
Low quiescent current for energy saving
Thermal shutdown and current limit for reliability
Key Technical Parameters
Input voltage up to 10V
Fixed output voltage of 3.3V
Maximum dropout voltage of 0.58V at 1A
Output current of 1A
Quiescent current of 125 µA
60dB PSRR at 1kHz
Quality and Safety Features
Over current protection
Over temperature protection
Reverse polarity protection
Compatibility
Compatible with ceramic, tantalum, and aluminum electrolytic capacitors
Suitable for surface mount technology
Application Areas
Consumer electronics
Industrial systems
Telecommunication infrastructure
Automotive applications
Product Lifecycle
Active status
Does not indicate nearing discontinuation
Availability of replacements or upgrades not specified
Several Key Reasons to Choose This Product
High-reliability with built-in protection features
Efficiency through low dropout and quiescent current
Wide operating temperature range from -40°C to 125°C
Suitable for diverse applications due to its features and high performance
Ease of use with simple enable and reset pins
Ensures stable performance with various types of capacitors
