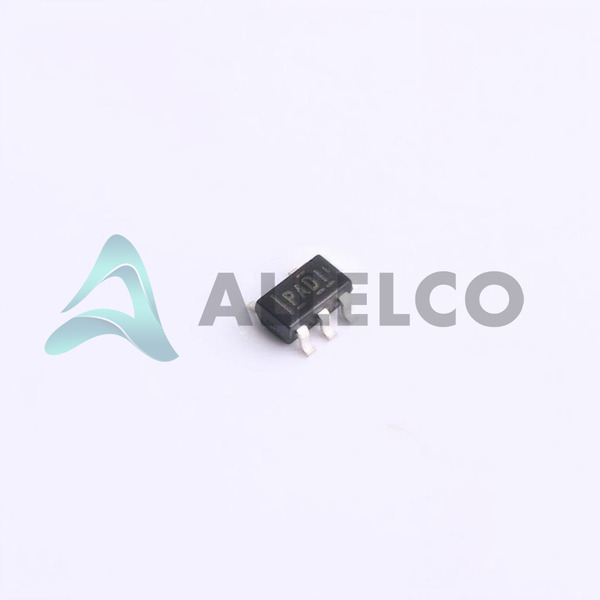

TPS2819DBVR - Texas Instruments

Manufacturer Part Number

TPS2819DBVR

Manufacturer

Texas Instruments

Introduction

TPS2819DBVR is a low-side gate driver designed for driving N-Channel MOSFETs in power management applications.

Product Features and Performance

Designed for low-side gate driving

Single channel output

Compatible with N-Channel MOSFET gate types

Supports a supply voltage range of 4V to 14V

Non-inverting input type

Features fast rise and fall times of 14ns

Can operate in a wide temperature range from -40°C to 125°C

Product Advantages

Precise control over MOSFET switching

Efficient power management

High-speed performance enhances system response

Robust thermal performance for reliability in different environments

Key Technical Parameters

Voltage Supply: 4V ~ 14V

Logic Voltage VIL, VIH: 1V, 4V

Current Peak Output (Source, Sink): 2A, 2A

Rise / Fall Time (Typ): 14ns, 14ns

Operating Temperature: -40°C ~ 125°C (TA)

Quality and Safety Features

Manufactured by Texas Instruments, ensuring high reliability and performance

Rigorous quality control measures for enhanced safety

Compatibility

Suitable for driving N-Channel MOSFETs

Compatible with various power management applications

Application Areas

Power supplies

Motor control circuits

Power management systems

Lighting controls

Product Lifecycle

Active product status

Not nearing discontinuation, with ongoing support and availability

Several Key Reasons to Choose This Product

Fast switching times improve system efficiency

Wide operating temperature range suitable for various environments

High peak output current capability

Reliable performance guaranteed by Texas Instruments

Versatile compatibility with N-Channel MOSFETs in power management circuits
