Manufacturer Part Number

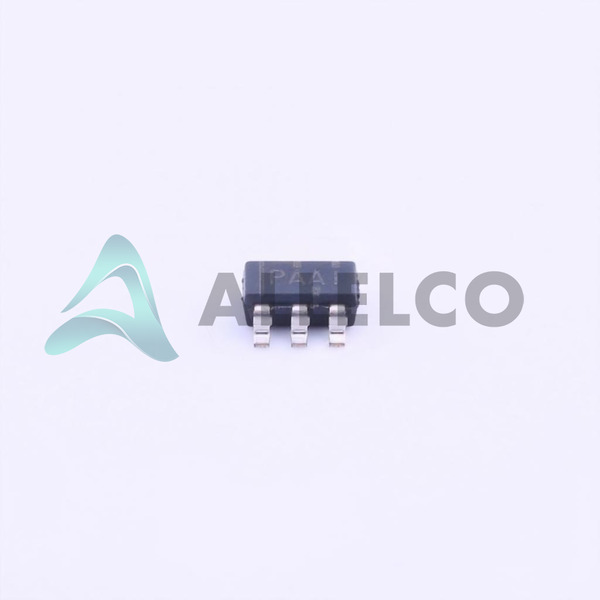

TPS2816DBVR
Manufacturer
Texas Instruments
Introduction
The TPS2816DBVR is a single channel low-side N-channel MOSFET gate driver.
Product Features and Performance
Supports Low-Side Configuration
Single Driver Channel
N-Channel MOSFET Gate Drive
Supply Voltage Range 4V to 14V
Logic Threshold Levels: VIL 1V, VIH 4V
Peak Output Current 2A Source, 2A Sink
Inverting Input
Fast Rise and Fall Times (14ns)
Surface Mount SC-74A, SOT-753 Package
Operating Temperature Range -40°C to 125°C
Product Advantages
Compact SOT-23-5 Package
High Drive Current Capability for MOSFET Switching
Fast Switching Times for High-Speed Applications
Wide Supply Voltage Range for Flexibility
Low Voltage Logic Compatibility
Key Technical Parameters
Driven Configuration: Low-Side
Channel Type: Single
Number of Drivers: 1
Gate Type: N-Channel MOSFET
Voltage - Supply: 4V ~ 14V
Logic Voltage - VIL, VIH: 1V, 4V
Current - Peak Output: 2A Source, 2A Sink
Rise / Fall Time: 14ns Typical
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Extended Temperature Range for Reliability
Robust Packaging for Surface Mounting
Compliance with Industry Standards
Compatibility
Compatible with N-Channel Power MOSFETs
Supports Logic-Level Gate Drive Requirements
Application Areas
Switching Power Supplies
DC-DC Converters
Motor Controllers
Power Management Circuits
Battery Powered Systems
Product Lifecycle
Product Status: Active
No Reported Discontinuation
Replacements or Upgrades may be Available
Several Key Reasons to Choose This Product
High Current Drive Capability Suitable for Heavy Load Conditions
Fast Switching for Efficient Power Conversion
Robust Temperature Range Ensures Performance in Harsh Environments
Compatible with a Wide Range of MOSFETs
Compact and Easy to Implement in Space-Constrained Applications
Proven Reliability Supported by Texas Instruments’ Reputation
