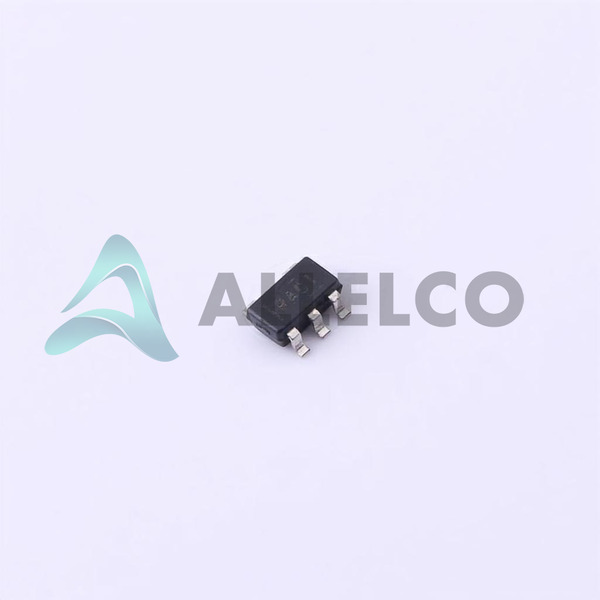

TPS2818DBVR - Texas Instruments

Manufacturer Part Number

TPS2818DBVR

Manufacturer

Texas Instruments

Introduction

The TPS2818DBVR is a single channel, low-side gate driver designed for driving N-Channel MOSFETs.

Product Features and Performance

Single Low-Side Gate Driver

Drives N-Channel MOSFET Gates

Peak Output Current Source/Sink of 2A

Supply Voltage Range from 4V to 14V

Inverting Input

Fast Rise and Fall Times of 14ns

Operating Temperature Range from -40°C to 125°C

Product Advantages

Optimized for Fast Switching

Low Propagation Delay

Robust Output Drive Current

Thermal Shutdown Protection

Key Technical Parameters

Number of Drivers: 1

Driven Configuration: Low-Side

Gate Type: N-Channel MOSFET

Logic Voltage - VIL, VIH: 1V, 4V

Current - Peak Output (Source, Sink): 2A, 2A

Rise / Fall Time (Typ): 14ns, 14ns

Quality and Safety Features

Protection against Over-Temperature Conditions

Stable Operation in the Specified Temperature Range

Compatibility

Can Drive N-Channel Power MOSFETs

Compatible with SOT-23-5 Package Requirements

Application Areas

Switchmode Power Supplies

Motor Control

Power Management Circuits

Power MOSFET Gate Driving Applications

Product Lifecycle

Active Product Status

Not Indicated as Nearing Discontinuation

Replacement or Upgrade Options Not Specified

Several Key Reasons to Choose This Product

High Drive Current Suitable for Fast Switching Applications

Wide Supply Voltage Range Accommodating Various Designs

Minimal Propagation Delay Enhancing System Performance

Compact SOT-23-5 Package for Space-Constrained Applications

Reliability with Built-in Protection Features

Texas Instruments' Reputation for High-Quality Components
