Manufacturer Part Number

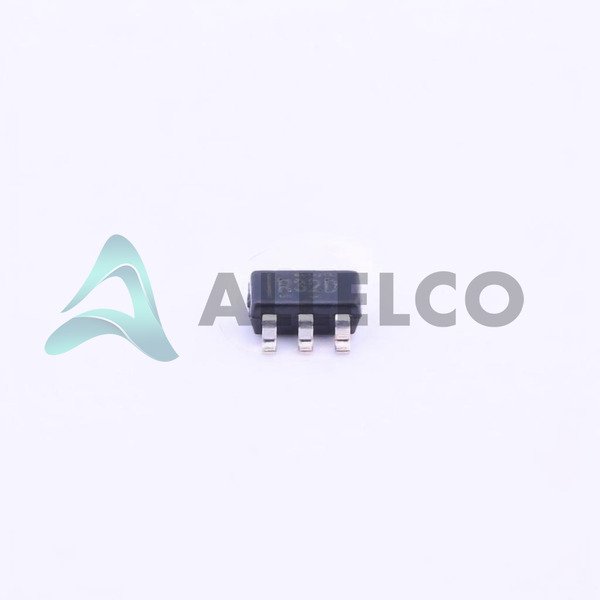

REF3230AIDBVT
Manufacturer
Texas Instruments
Introduction
The REF3230AIDBVT is a high-precision voltage reference integrated circuit (IC) from Texas Instruments. It is designed for a wide range of applications requiring a stable and accurate reference voltage.
Product Features and Performance
Fixed 3V output voltage
Low temperature coefficient of 20ppm/°C
High output current capability of 10mA
Wide input voltage range of 3.05V to 5.5V
Low noise of 39Vp-p (0.1Hz to 10Hz) and 57Vrms (10Hz to 10kHz)
Tight voltage tolerance of ±0.2%
Wide operating temperature range of -40°C to 125°C
Product Advantages
Excellent stability and accuracy
High output current capacity
Wide input voltage and temperature range
Low noise performance
Small SOT-23-6 package
Key Technical Parameters
Manufacturer Part Number: REF3230AIDBVT
Package: SOT-23-6
Output Type: Fixed
Voltage Output (Min/Fixed): 3V
Current Output: 10mA
Current Supply: 135μA
Temperature Coefficient: 20ppm/°C
Voltage Input: 3.05V to 5.5V
Noise 0.1Hz to 10Hz: 39Vp-p
Noise 10Hz to 10kHz: 57Vrms
Tolerance: ±0.2%
Quality and Safety Features
RoHS3 compliant
Suitable for a wide range of industrial and consumer applications
Compatibility
The REF3230AIDBVT is a surface mount device compatible with SOT-23-6 footprint
Application Areas
Precision analog circuits
Data acquisition systems
Instrumentation and measurement equipment
Industrial control systems
Portable electronic devices
Product Lifecycle
The REF3230AIDBVT is an active product, and Texas Instruments continues to support and manufacture this voltage reference IC.
Key Reasons to Choose This Product
Excellent stability and accuracy with low temperature coefficient
High output current capability
Wide input voltage and temperature range
Low noise performance
Small, space-saving package
RoHS3 compliance for use in a variety of applications
Availability and ongoing support from a trusted manufacturer, Texas Instruments
