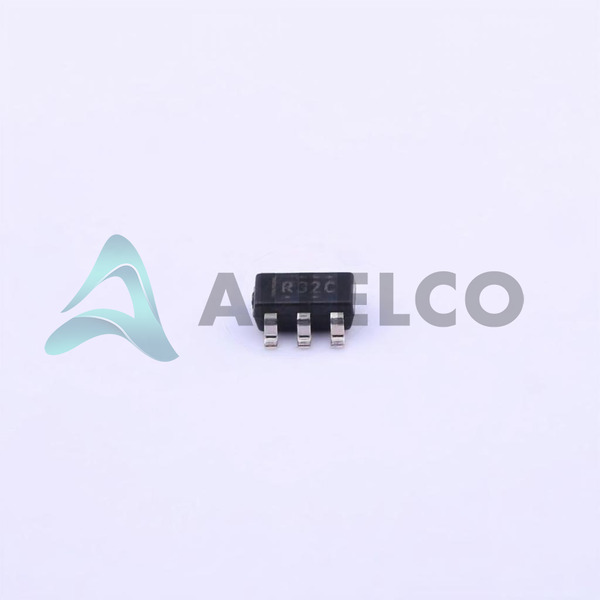

REF3225AIDBVR - Texas Instruments

Manufacturer Part Number

REF3225AIDBVR

Manufacturer

Texas Instruments

Introduction

The REF3225AIDBVR is a high-precision, low-noise voltage reference integrated circuit (IC) from Texas Instruments.

Product Features and Performance

Fixed output voltage of 2.5V

Low output current of 10mA

Wide operating temperature range of -40°C to 125°C

Low temperature coefficient of 20ppm/°C

Wide input voltage range of 2.55V to 5.5V

Low noise: 33μVp-p (0.1Hz to 10Hz), 48μVrms (10Hz to 10kHz)

Tight voltage tolerance of ±0.2%

Product Advantages

Excellent stability and precision

Wide operating temperature range

Low noise and power consumption

Small SOT-23-6 package for compact designs

Key Technical Parameters

Manufacturer Part Number: REF3225AIDBVR

Output Voltage: 2.5V (fixed)

Output Current: 10mA

Supply Current: 135μA

Temperature Coefficient: 20ppm/°C

Input Voltage Range: 2.55V to 5.5V

Noise: 33μVp-p (0.1Hz to 10Hz), 48μVrms (10Hz to 10kHz)

Tolerance: ±0.2%

Operating Temperature: -40°C to 125°C

Quality and Safety Features

ROHS3 compliant

Suitable for surface-mount applications

Compatibility

The REF3225AIDBVR is compatible with a wide range of electronic devices and applications.

Application Areas

Suitable for use in precision analog circuits, data converters, and other applications where a stable, low-noise voltage reference is required.

Product Lifecycle

The REF3225AIDBVR is an active product and is not nearing discontinuation.

Replacement or upgraded products may be available in the future.

Several Key Reasons to Choose This Product

Excellent stability and precision with a tight voltage tolerance of ±0.2%

Wide operating temperature range of -40°C to 125°C

Low noise and power consumption

Small, space-saving SOT-23-6 package

Compatibility with a wide range of electronic devices and applications

Ongoing availability and potential for future replacement or upgraded products
