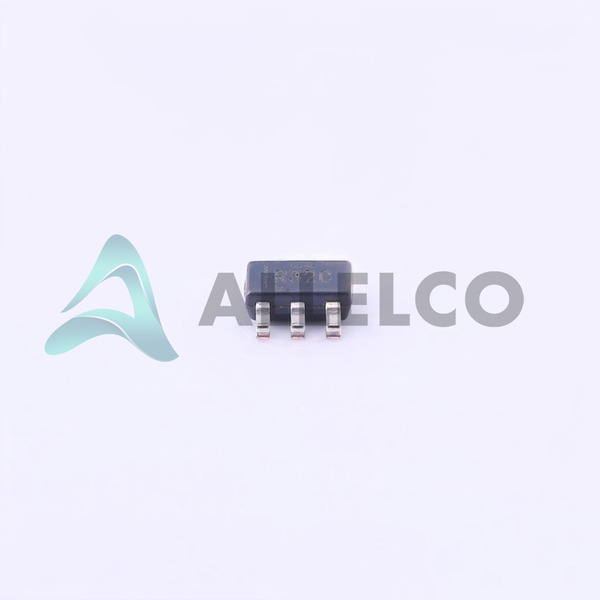

REF3225AIDBVT - Texas Instruments

Manufacturer Part Number

REF3225AIDBVT

Manufacturer

Texas Instruments

Introduction

Precision Low-Dropout Voltage Reference

Product Features and Performance

Series Reference Type

Fixed Output Voltage of 2.5V

Output Current Capability of 10 mA

Low Temperature Coefficient (20ppm/°C)

Low Noise Performance (33µVp-p from 0.1Hz to 10Hz, 48µVrms from 10Hz to 10kHz)

Wide Input Voltage Range (2.55V to 5.5V)

Low Supply Current (135µA)

Operating Temperature Range -40°C to 125°C

Product Advantages

High Precision Voltage Reference

Stable and Accurate Performance

Low Power Consumption

Robust Operating Temperature Range

Key Technical Parameters

Tolerance of ±0.2%

Temperature Coefficient: 20ppm/°C

Noise Level: 33µVp-p (0.1Hz to 10Hz); 48µVrms (10Hz to 10kHz)

Input Voltage Range: 2.55V to 5.5V

Supply Current: 135µA

Quality and Safety Features

Highly Integrated Design for Reliable Performance

Compatibility

Suitable for Surface Mount Technology (SMT)

Packaged in SOT-23-6 for Compact Footprint

Application Areas

Precision Power Supplies

Data Acquisition Systems

Instrumentation

Portable and Battery-Powered Electronics

Industrial Control Systems

Product Lifecycle

Not For New Designs

Replacement or Upgrade Options May Be Available

Several Key Reasons to Choose This Product

Precision Reference Output Minimizes Error in Applications

Low Noise Suitable for Sensitive Electronics

Energy-Efficient Design for Portable Applications

Wide Operating Temperature Suited for Harsh Environments

Reliable and Well-Supported by Texas Instruments

Ideal for High-Performance Power Management Solutions
