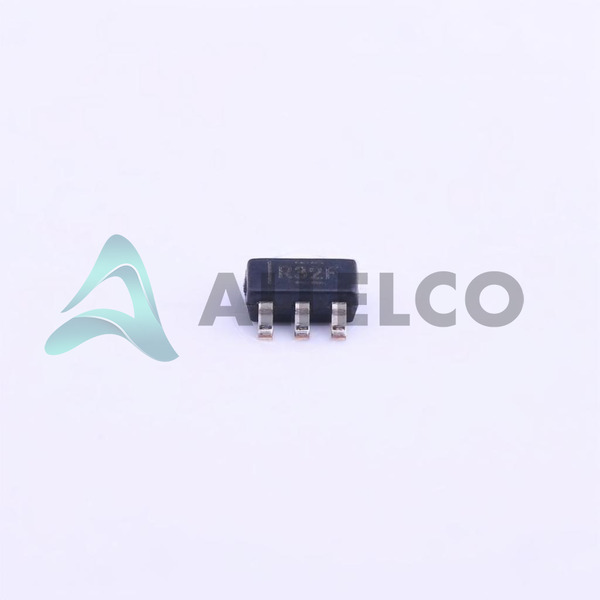

REF3240AIDBVT - Texas Instruments

Manufacturer Part Number

REF3240AIDBVT

Manufacturer

Texas Instruments

Introduction

A high precision voltage reference for power management applications.

Product Features and Performance

Fixed output voltage of 4.096V

Maximum output current of 10 mA

Tolerance of ±0.2%

Low temperature coefficient at 20ppm/°C

Low noise performance, 53µVp-p from 0.1Hz to 10Hz and 78µVrms from 10Hz to 10kHz

Input voltage range from 4.146V to 5.5V

Supply current of 135µA

Operational temperature range from -40°C to 125°C

Product Advantages

Stable and precise voltage output

Low power consumption and supply current

High noise reduction capabilities

Extended temperature range for various environments

Key Technical Parameters

Output Voltage: 4.096V

Output Current: 10 mA

Voltage Tolerance: ±0.2%

Temperature Coefficient: 20ppm/°C

Supply Voltage Range: 4.146V ~ 5.5V

Supply Current: 135µA

Quality and Safety Features

Robust performance in a wide temperature range

Low output noise for sensitive applications

Compatibility

Compatible with various circuit designs requiring a fixed reference voltage

Surface Mount design for effective PCB integration

Application Areas

Power Management Systems

Data Acquisition Systems

Instrumentation

Precision Voltage Regulation

Product Lifecycle

Product Status: Not For New Designs

Potential for replacement or upgrade options based on new technology and industry progression

Several Key Reasons to Choose This Product

High precision voltage output suited for critical applications

Efficient power consumption makes it ideal for battery-operated devices

Enhanced accuracy with low temperature coefficient

Suitable for high-performance industrial and consumer electronics

Robust package design to withstand harsh environmental conditions

Low noise specifications beneficial for precision measurement equipment
