Manufacturer Part Number

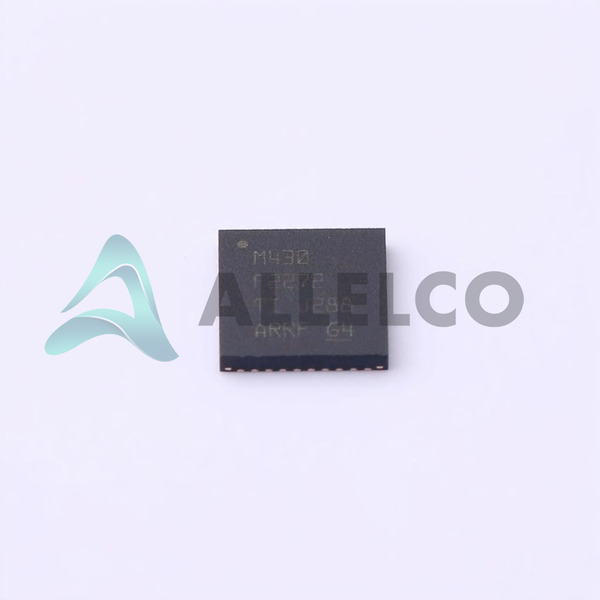

MSP430F2272IRHAR
Manufacturer
Texas Instruments
Introduction
Low-power, mixed-signal microcontroller for various embedded applications
Product Features and Performance
16-Bit MSP430 CPU16 core
Maximum Speed of 16MHz
32KB FLASH with additional 256B
1KB RAM memory
12-channel 10-bit Analog-to-Digital converter
Multiple communication interfaces: I2C, IrDA, LINbus, SCI, SPI, UART/USART
Product Advantages
Low-power consumption ideal for battery-powered devices
Extended temperature range for industrial applications
High integration for space-constrained applications
Flexible power management system
Large set of integrated peripherals reduces external component count
Key Technical Parameters
Core Size: 16-Bit
Speed: 16MHz
Program Memory Size: 32KB
RAM Size: 1K x 8
Number of I/O: 32
Supply Voltage Vcc/Vdd: 1.8V ~ 3.6V
Data Converters: A/D 12x10b
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package/Case: 40-VFQFN Exposed Pad
Quality and Safety Features
Brown-out Detect/Reset
Power-on Reset (POR)
Watchdog Timer (WDT)
Compatibility
Compatible with other MSP430F2xx series microcontrollers
Interfaces with standard communication protocols
Application Areas
Industrial control systems
Consumer electronics
Sensing and instrumentation
Wireless connectivity and IoT applications
Product Lifecycle
Product Status: Active
Not nearing discontinuation, replacements/upgrades typically available
Several Key Reasons to Choose This Product
High-performance MSP430 CPU core in small package
Extensive I/O capabilities facilitating rich user interfaces and control options
Low-power design enables operation in power-sensitive applications
Robust Analog-to-Digital conversion for precise sensor readings
Broad compatibility and easy integration into existing systems
Supported by Texas Instruments' comprehensive development tools and software library
