Manufacturer Part Number

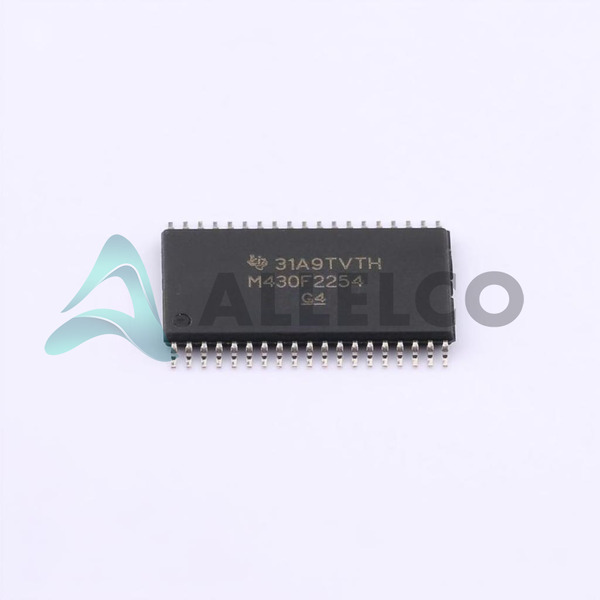

MSP430F2254IDAR
Manufacturer
Texas Instruments
Introduction
16-bit ultra-low-power microcontroller with 16MHz MSP430 CPU16 core, flash memory, and multiple communication interfaces.
Product Features and Performance
16-bit RISC Architecture
Max speed of 16 MHz
Tape & Reel packaging for automated assembly
MSP430F2xx Series known for low power consumption
Integrated peripherals enhancing system performance
Product Advantages
High integration reduces external components
Ultra-low power consumption suitable for battery-powered applications
Wide range of embedded communication interfaces
Key Technical Parameters
Core Size: 16-Bit
Speed: 16MHz
Connectivity: I2C, IrDA, LINbus, SCI, SPI, UART/USART
Program Memory Size: 16KB (16K x 8 + 256B)
RAM Size: 512 x 8
Voltage Supply: 1.8V to 3.6V
Data Converters: 12-channel, 10-bit A/D converter
Operating Temperature: -40°C to 85°C
Quality and Safety Features
Brown-out Detect/Reset
Power-on Reset (POR)
Watchdog Timer (WDT)
Robust operation within extended temperature range
Compatibility
Compatible with various 16-bit MSP430 microcontroller development environments
Application Areas
Consumer Electronics
Industrial automation
Handheld devices
Sensing and instrumentation
Energy management
Product Lifecycle
Status: Active
Not nearing discontinuation
Availability of replacements upgrades assured by manufacturer
Several Key Reasons to Choose This Product
Highly efficient 16-bit MSP430 architecture reducing power cycles
Broad connectivity with multiple serial communication interfaces for greater system flexibility
Generous program and RAM memory accommodating complex software requirements
Suitable for a wide range of applications due to a diversified set of integrated peripherals
Reliability over a wide operating temperature range, ensuring deployment in various environmental conditions
Continued product lifecycle support from Texas Instruments ensures long-term availability
