HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMSP430F2330IRHAR

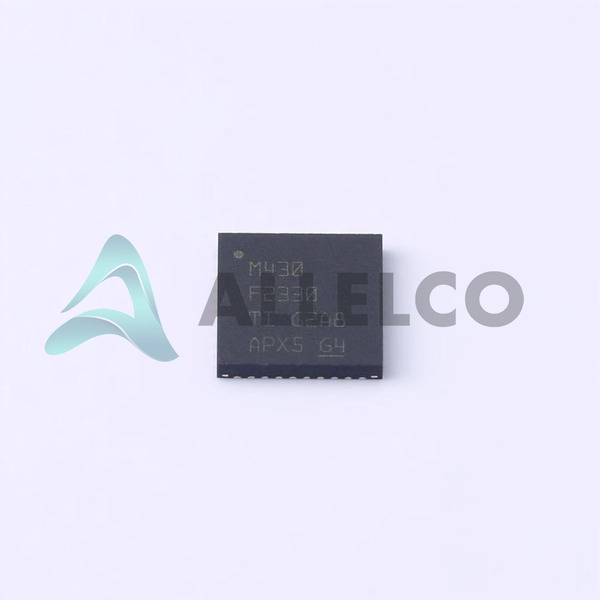

MSP430F2330IRHAR Image
MSP430F2330IRHAR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MSP430F2330IRHAR - Texas Instruments

Manufacturer Part Number
MSP430F2330IRHAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-MSP430F2330IRHAR
ECAD Model
Parts Description
IC MCU 16BIT 8KB FLASH 40VQFN
Package
40-VFQFN Exposed Pad
Data sheet
MSP430x2xx User Guide.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 8502

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

MSP430F2330IRHAR Tech Specifications
Texas Instruments - MSP430F2330IRHAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F2330IRHAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 40-VQFN (6x6)
Speed 16MHz
Series MSP430F2xx
RAM Size 1K x 8
Program Memory Type FLASH
Program Memory Size 8KB (8K x 8 + 256B)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 40-VFQFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 32
Mounting Type Surface Mount
EEPROM Size -
Data Converters Slope A/D
Core Size 16-Bit
Core Processor MSP430 CPU16
Connectivity I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number MSP430F2330

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430F2330IRHAR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) microcontroller

Part of the MSP430 family of low-power, mixed-signal processors

Product Features and Performance

16-bit RISC CPU

8KB Flash program memory

1KB RAM

32 I/O pins

Peripherals include Brown-out Detect/Reset, POR, PWM, WDT

16MHz clock speed

8V to 3.6V operating voltage range

Supports IrDA, LIN bus, SCI, SPI, UART/USART interfaces

Product Advantages

Low power consumption

Highly integrated solution

Flexible peripherals for diverse applications

Key Technical Parameters

Package: 40-VQFN (6x6) Exposed Pad

Mounting Type: Surface Mount

Operating Temperature: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Manufacturer's packaging: Tape & Reel (TR)

Compatibility

Part of the MSP430F2xx series

Application Areas

Embedded systems

Portable devices

Industrial automation

Metering

Sensing and control

Product Lifecycle

Currently in active production

Replacement/upgrade options available within the MSP430 family

Key Reasons to Choose

Highly integrated low-power microcontroller

Flexible peripheral set for diverse applications

Proven reliability and performance in the MSP430 platform

Wide operating temperature range

RoHS3 compliance for environmental safety

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430F2330IRHAR

Product Attribute MSP430F2330IRHAR MSP430F2274IRHAR MSP430F233TRGCR MSP430F2274MRHATEP
Part Number MSP430F2330IRHAR MSP430F2274IRHAR MSP430F233TRGCR MSP430F2274MRHATEP
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Connectivity I²C, IrDA, LINbus, SCI, SPI, UART/USART I²C, IrDA, LINbus, SCI, SPI, UART/USART I²C, IrDA, LINbus, SCI, SPI, UART/USART I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number MSP430F2330 MSP430F2274 MSP430F233 MSP430F2274
Core Processor MSP430 CPU16 MSP430 CPU16 MSP430 CPU16 MSP430 CPU16
Core Size 16-Bit 16-Bit 16-Bit 16-Bit
Speed 16MHz 16MHz 16MHz 16MHz
Series MSP430F2xx MSP430F2xx MSP430F2xx MSP430F2xx
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Package / Case 40-VFQFN Exposed Pad 40-VFQFN Exposed Pad 64-VFQFN Exposed Pad 40-VFQFN Exposed Pad
Data Converters Slope A/D A/D 12x10b A/D 8x12b A/D 12x10b
Program Memory Size 8KB (8K x 8 + 256B) 32KB (32K x 8 + 256B) 8KB (8K x 8 + 256B) 32KB (32K x 8 + 256B)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 32 32 48 32
Program Memory Type FLASH FLASH FLASH FLASH
Oscillator Type Internal Internal Internal Internal
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 105°C (TA) -55°C ~ 125°C (TA)
RAM Size 1K x 8 1K x 8 1K x 8 1K x 8
Supplier Device Package 40-VQFN (6x6) 40-VQFN (6x6) 64-VQFN (9x9) 40-VQFN (6x6)
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
EEPROM Size - - - -
