HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversMIC2009YML-TR

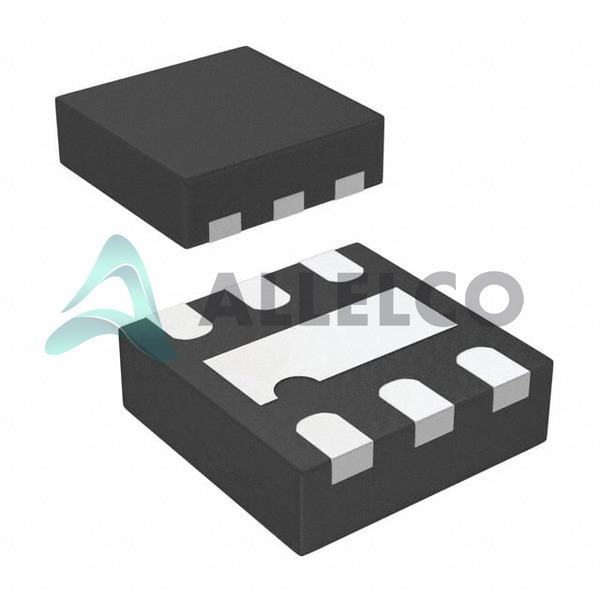

MIC2009YML-TR Image
Image may be representation.
See specifications for product details.

MIC2009YML-TR - Microchip Technology

Manufacturer Part Number
MIC2009YML-TR
Manufacturer
Microchip Technology
Allelco Part Number
32D-MIC2009YML-TR
ECAD Model
Parts Description
IC PWR SWITCH P-CHAN 1:1 6MLF
Detailed Description
Package
6-VDFN Exposed Pad, 6-MLF®
Data sheet
MIC20xx Family.pdf
RoHs Status
ROHS3 Compliant
In stock: 27783

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

MIC2009YML-TR Tech Specifications
Microchip Technology - MIC2009YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - MIC2009YML-TR

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.5V ~ 5.5V
Switch Type General Purpose
Supplier Device Package 6-DFN (2x2)
Series -
Rds On (Typ) 70mOhm
Ratio - Input:Output 1:1
Package / Case 6-VDFN Exposed Pad, 6-MLF®
Package Tape & Reel (TR)
Output Type P-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features -
Fault Protection Current Limiting (Adjustable), Over Temperature
Current - Output (Max) 2A
Base Product Number MIC2009

Parts Introduction

Manufacturer Part Number

MIC2009YML-TR

Manufacturer

Microchip Technology

Introduction

The MIC2009YML-TR is a power management integrated circuit (PMIC) designed for power distribution switching and load driving. It is packaged in a Tape & Reel format for efficiency in high-volume production.

Product Features and Performance

Integrated P-Channel MOSFET

High Side Output Configuration

On/Off Interface Control

Supports Voltages from 2.5V to 5.5V

Maximum Output Current of 2A

Low On-Resistance of 70mOhm

Operating Temperature Range From -40°C to 85°C

Product Advantages

Simplifies power distribution with integrated switch

Supports a broad range of load voltages

Ensures thermal stability with over-temperature protection

Promotes design efficiency with surface mount packaging technology

Key Technical Parameters

Switch Type: General Purpose

Number of Outputs: 1

Output Type: P-Channel

Voltage Load: 2.5V to 5.5V

Current Output (Max): 2A

Rds On (Typ): 70mOhm

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Current Limiting (Adjustable)

Over Temperature Protection

Compatibility

Compatible with various digital and analog loads within specified voltage and current ratings

Application Areas

Consumer Electronics

Industrial Automation

Telecommunications

Computing Systems

Product Lifecycle

Currently in Active status with ongoing manufacturing support

Not nearing discontinuation, stable supply availability

Several Key Reasons to Choose This Product

High reliability for diverse applications due to wide temperature and voltage range

Compact 6-DFN (2x2) package ideal for space-constrained applications

Provides efficient power distribution control with adjustable current limiting feature and low power dissipation

Ease of integration in various circuit designs with non-inverting input type and simple on/off interface control

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology MIC2009YML-TR

Product Attribute MIC2009YML-TR MIC2009A-1YM6-TR MIC2008YM6 MIC2009YML
Part Number MIC2009YML-TR MIC2009A-1YM6-TR MIC2008YM6 MIC2009YML
Manufacturer Microchip Technology Microchip Technology Microchip Technology Micrel Inc.
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Base Product Number MIC2009 MIC2009 MIC2008 MIC2009
Supplier Device Package 6-DFN (2x2) SOT-23-6 SOT-23-6 6-MLF® (2x2)
Input Type Non-Inverting Non-Inverting Non-Inverting Non-Inverting
Features - - Slew Rate Controlled Status Flag
Interface On/Off On/Off On/Off On/Off
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Rds On (Typ) 70mOhm 170mOhm 70mOhm 70mOhm
Output Configuration High Side High Side High Side High Side
Package / Case 6-VDFN Exposed Pad, 6-MLF® SOT-23-6 SOT-23-6 6-VDFN Exposed Pad, 6-MLF®
Current - Output (Max) 2A 900mA 2A 2A
Switch Type General Purpose General Purpose General Purpose USB Switch
Ratio - Input:Output 1:1 1:1 1:1 1:1
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package Tape & Reel (TR) Tape & Reel (TR) Bulk Bulk
Output Type P-Channel P-Channel P-Channel P-Channel
Series - - - -
Number of Outputs 1 1 1 1
Voltage - Load 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V
Fault Protection Current Limiting (Adjustable), Over Temperature Current Limiting (Adjustable), Over Temperature Current Limiting (Adjustable), Over Temperature Current Limiting (Adjustable), Over Temperature, UVLO

MIC2009YML-TR Datasheet PDF

Download MIC2009YML-TR pdf datasheets and Microchip Technology documentation for MIC2009YML-TR - Microchip Technology.

Datasheets
MIC20xx Family.pdf
