HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversMIC2009A-1YM6-TR

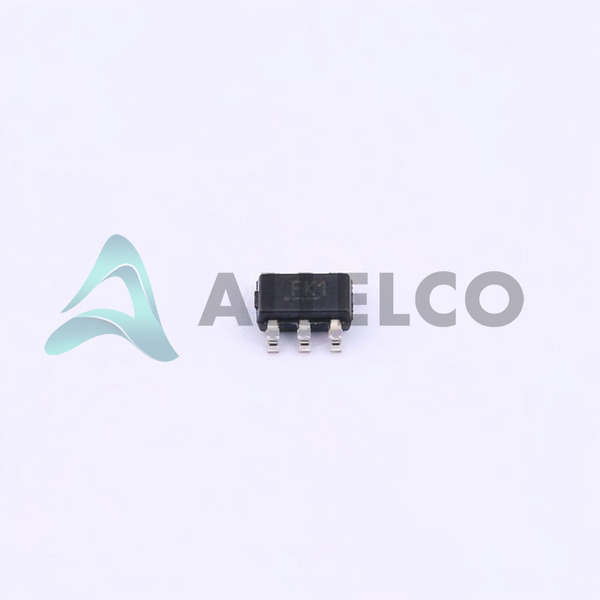

MIC2009A-1YM6-TR Image
MIC2009A-1YM6-TR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

MIC2009A-1YM6-TR - Microchip Technology

Manufacturer Part Number
MIC2009A-1YM6-TR
Manufacturer
Microchip Technology
Allelco Part Number
32D-MIC2009A-1YM6-TR
ECAD Model
Parts Description
IC PWR SWITCH P-CHAN 1:1 SOT23-6
Detailed Description
Package
SOT-23-6
Data sheet
MIC20xx Family.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 105200

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

MIC2009A-1YM6-TR Tech Specifications
Microchip Technology - MIC2009A-1YM6-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - MIC2009A-1YM6-TR

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.5V ~ 5.5V
Switch Type General Purpose
Supplier Device Package SOT-23-6
Series -
Rds On (Typ) 170mOhm
Ratio - Input:Output 1:1
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Type P-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features -
Fault Protection Current Limiting (Adjustable), Over Temperature
Current - Output (Max) 900mA
Base Product Number MIC2009

Parts Introduction

Manufacturer Part Number

MIC2009A-1YM6-TR

Manufacturer

Microchip Technology

Introduction

Power Management Integrated Circuit for power distribution

Product Features and Performance

Single P-Channel High-Side Load Switch

Current Limiting and Thermal Protection

Low On-Resistance 170mOhms

Product Advantages

Reduced Power Dissipation with P-Channel MOSFET

Adjustable Current Limit for Design Flexibility

Integrated Fault Protection enhances system reliability

Key Technical Parameters

Input:Output Ratio of 1:1

Voltage - Load range from 2.5V to 5.5V

Maximum Output Current of 900mA

Non-Inverting Input Type

Operating Temperature from -40°C to 85°C

Quality and Safety Features

Over Temperature Protection

Adjustable Current Limiting for Safety and Power Management

Compatibility

Compatible with On/Off Interface Control

Mountable on Surface with SOT-23-6 Package

Application Areas

Mobile Devices, Portable Electronics, Power Distribution Systems

Product Lifecycle

Currently Active

No indication of discontinuation

Reasons to Choose This Product

High Efficiency for Battery-powered Devices

Space-saving SOT-23-6 Package

Ease of Integration with On/Off Control Interface

Protects Against Overcurrent and Overheating

Suitable for a Wide Range of Operating Temperatures

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology MIC2009A-1YM6-TR

Product Attribute MIC2009A-1YM6-TR MIC2006-0.8YM6 MIC2006-0.5YM6 MIC2009YML
Part Number MIC2009A-1YM6-TR MIC2006-0.8YM6 MIC2006-0.5YM6 MIC2009YML
Manufacturer Microchip Technology Microchip Technology Microchip Technology Micrel Inc.
Number of Outputs 1 1 1 1
Switch Type General Purpose General Purpose General Purpose USB Switch
Series - - - -
Fault Protection Current Limiting (Adjustable), Over Temperature Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO
Output Type P-Channel P-Channel P-Channel P-Channel
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case SOT-23-6 SOT-23-6 SOT-23-6 6-VDFN Exposed Pad, 6-MLF®
Package Tape & Reel (TR) Bulk Bulk Bulk
Current - Output (Max) 900mA 800mA 500mA 2A
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Input Type Non-Inverting Non-Inverting Non-Inverting Non-Inverting
Base Product Number MIC2009 MIC2006 MIC2006 MIC2009
Features - Slew Rate Controlled Slew Rate Controlled Status Flag
Supplier Device Package SOT-23-6 SOT-23-6 SOT-23-6 6-MLF® (2x2)
Voltage - Load 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V
Interface On/Off On/Off On/Off On/Off
Ratio - Input:Output 1:1 1:1 1:1 1:1
Output Configuration High Side High Side High Side High Side
Rds On (Typ) 170mOhm 70mOhm 70mOhm 70mOhm
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
