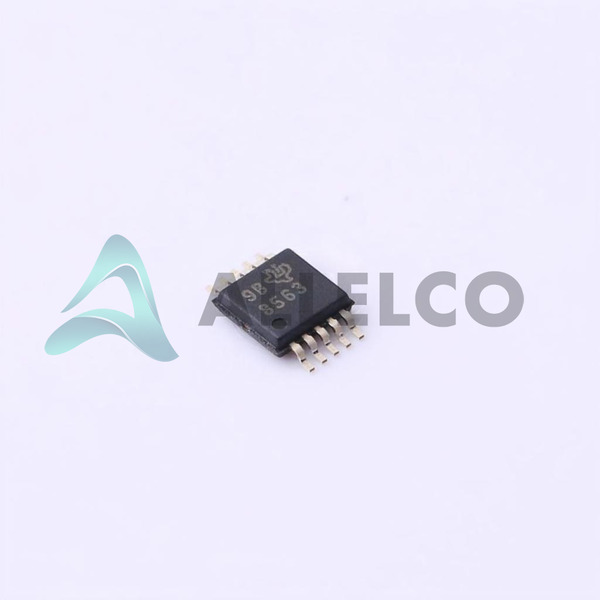

DAC8563SDGST - Texas Instruments

Manufacturer Part Number

DAC8563SDGST

Manufacturer

Texas Instruments

Introduction

The DAC8563SDGST is a high-performance, 16-bit, dual-channel digital-to-analog converter (DAC) from Texas Instruments. It is designed for a wide range of applications, including industrial automation, process control, and test and measurement equipment.

Product Features and Performance

16-bit resolution

Dual-channel output

10 µs typical settling time

Buffered voltage output

Internal or external reference support

SPI and DSP digital interfaces

Wide supply voltage range of 2.7V to 5.5V

Low power consumption

Wide operating temperature range of -40°C to 125°C

Product Advantages

Excellent linearity (INL/DNL) of ±4 LSB / ±0.2 LSB

Compact 10-TFSOP or 10-MSOP package

Versatile digital interface options (SPI, DSP)

Flexible reference options (internal or external)

Wide operating temperature range

Key Reasons to Choose This Product

High-performance and precision 16-bit DAC

Dual-channel output for efficient system design

Low power consumption and wide supply voltage range

Reliable and robust operation across a wide temperature range

Versatile digital interface and reference options

Quality and Safety Features

Fully specified for industrial temperature range (-40°C to 125°C)

Designed and manufactured to high quality standards

Robust package options for reliable surface mount assembly

Compatibility

The DAC8563SDGST is compatible with a wide range of industrial and electronics applications, including:

Industrial automation and process control

Test and measurement equipment

Medical instrumentation

Audio/video equipment

General-purpose analog signal generation

Application Areas

Industrial automation and process control

Test and measurement equipment

Medical instrumentation

Audio/video equipment

General-purpose analog signal generation

Product Lifecycle

The DAC8563SDGST is an active product in our website's sales team's portfolio. There are no plans for discontinuation at this time. Customers are advised to check with our website's sales team or their local sales representative for the latest product information and availability.
