Manufacturer Part Number

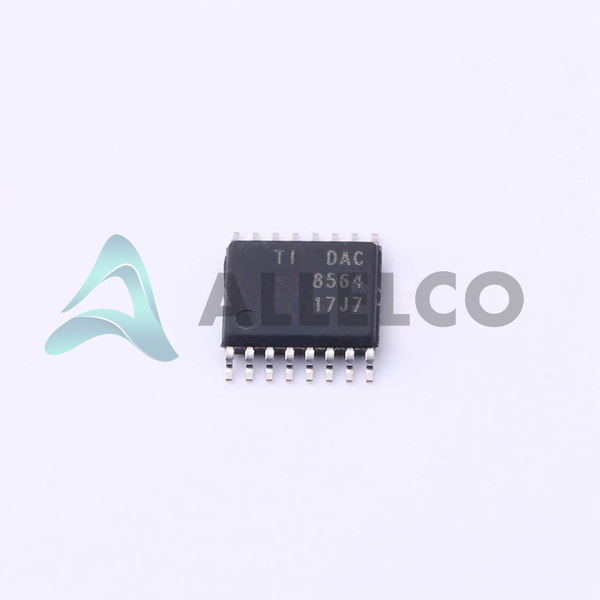

DAC8564IAPWR
Manufacturer
Texas Instruments
Introduction
The DAC8564IAPWR is a high-performance, quad-channel digital-to-analog converter (DAC) designed for precise data acquisition applications.
Product Features and Performance
Quad 16-bit digital-to-analog converters
Fast settling time of 10µs
Buffered voltage output
SPI and DSP interface compatibility
Supports external and internal reference voltages
Product Advantages
High resolution of 16 bits for precise output
Multi-channel output with four DACs in one package
Flexible reference voltage input for varied application needs
Key Technical Parameters
Number of Bits: 16
Number of D/A Converters: 4
Settling Time: 10µs
Output Type: Voltage Buffered
Voltage Supply, Analog: 2.7V ~ 5.5V
Voltage Supply, Digital: 2.7V ~ 5.5V
INL/DNL (LSB): ±4, ±0.5
Operating Temperature: -40°C ~ 105°C
Quality and Safety Features
Operates within a wide temperature range of -40°C to 105°C ensuring reliability under various environmental conditions
Compatibility
Compatible with SPI and DSP data interfaces for easy integration into existing systems
Application Areas
Industrial automation
Data acquisition systems
Medical instrumentation
Test and measurement equipment
Product Lifecycle
Currently active product status
Not reported as near discontinuation
Availability of replacements or upgrades not specified
Several Key Reasons to Choose This Product
High precision with 16-bit resolution suitable for detailed data acquisition
Four DACs integrated in one chip saving space and cost
Fast settling time enabling rapid output adjustments
Wide operating temperature range making it suitable for harsh environments
Dual voltage supply options providing design flexibility
Compatible with common digital interfaces for seamless system integration
