HomeProductsIntegrated Circuits (ICs)Data Acquisition - Digital to Analog Converters (DAC)DAC8563SDGSR

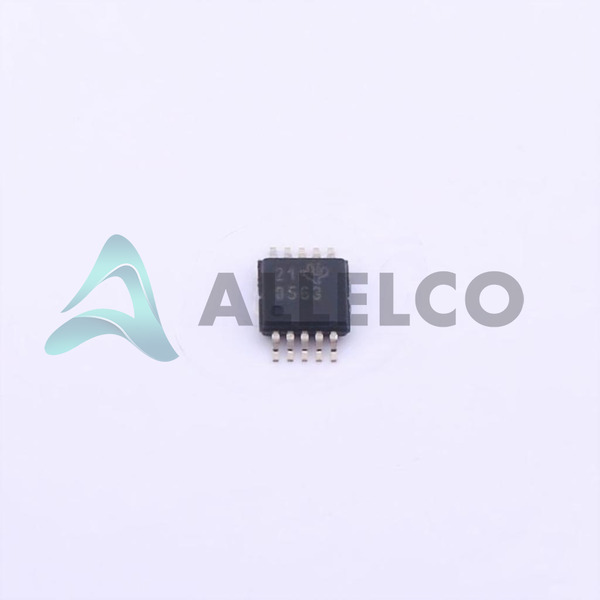

DAC8563SDGSR Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

DAC8563SDGSR - Texas Instruments

Manufacturer Part Number
DAC8563SDGSR
Manufacturer
Texas Instruments
Allelco Part Number
32D-DAC8563SDGSR
ECAD Model
Parts Description
IC DAC 16BIT V-OUT 10VSSOP
Package
10-TFSOP, 10-MSOP (0.118', 3.00mm Width)
Data sheet
Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 8306

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

DAC8563SDGSR Tech Specifications
Texas Instruments - DAC8563SDGSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DAC8563SDGSR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2.7V ~ 5.5V
Voltage - Supply, Analog 2.7V ~ 5.5V
Supplier Device Package 10-VSSOP
Settling Time 10µs (Typ)
Series -
Reference Type External, Internal
Package / Case 10-TFSOP, 10-MSOP (0.118', 3.00mm Width)
Package Tape & Reel (TR)
Output Type Voltage - Buffered
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of D/A Converters 2
Number of Bits 16
Mounting Type Surface Mount
INL/DNL (LSB) ±4, ±0.2
Differential Output No
Data Interface SPI, DSP
Base Product Number DAC8563
Architecture String DAC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

DAC8563SDGSR

Manufacturer

Texas Instruments

Introduction

DAC8563SDGSR is a high-performance, dual-channel 16-bit Digital to Analog Converter (DAC) optimized for accurate data acquisition and signal conversion.

Product Features and Performance

16-bit resolution

Dual-channel DAC

Settling Time of 10µs (Typ)

Buffered Voltage Output

String DAC architecture for precise performance

Supports SPI and DSP data interfaces

Operational with both external and internal references

Suitable for a wide range of supply voltages (2.7V ~ 5.5V for both analog and digital)

Product Advantages

Reduced settling time accelerates performance

Dual-channel output increases system flexibility

High-resolution output improves signal quality

String DAC architecture enhances accuracy

Key Technical Parameters

Number of Bits: 16

Number of D/A Converters: 2

Settling Time: 10µs (Typ)

Voltage - Supply, Analog: 2.7V ~ 5.5V

Voltage - Supply, Digital: 2.7V ~ 5.5V

INL/DNL (LSB): ±4, ±0.2

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Robust operation in extreme temperatures ranging from -40°C to 125°C

String architecture provides intrinsic error correction for enhanced accuracy

Compatibility

Compatible with SPI and DSP interfaces for flexible communication options

Supports both external and internal reference voltages for various application needs

Application Areas

Telecommunications

Industrial control systems

Portable instrumentation

Medical equipment

Product Lifecycle

Currently in active production

Not nearing discontinuation

Future upgrades or replacement products will be announced depending on market needs

Several Key Reasons to Choose This Product

High-resolution 16-bit dual DAC improves overall system accuracy

Rapid 10µs settling time enables faster signal processing

Flexible support for both internal and external references suits various system designs

Operates reliably over a wide temperature range (-40°C ~ 125°C), ensuring performance in harsh environments

Compatibility with SPI and DSP interfaces allows easy integration into existing systems

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DAC8563SDGSR

Product Attribute DAC8563SDGSR DAC8562SDSCR DAC8562SDGSR DAC8564IAPW
Part Number DAC8563SDGSR DAC8562SDSCR DAC8562SDGSR DAC8564IAPW
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 10-TFSOP, 10-MSOP (0.118', 3.00mm Width) 10-WFDFN Exposed Pad 10-TFSOP, 10-MSOP (0.118', 3.00mm Width) 16-TSSOP (0.173', 4.40mm Width)
Number of Bits 16 16 16 16
Settling Time 10µs (Typ) 10µs (Typ) 10µs (Typ) 10µs
Data Interface SPI, DSP SPI, DSP SPI, DSP SPI, DSP
Differential Output No No No No
Voltage - Supply, Digital 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
INL/DNL (LSB) ±4, ±0.2 ±4, ±0.2 ±4, ±0.2 ±4, ±0.5
Series - - - -
Reference Type External, Internal External, Internal External, Internal External, Internal
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tube
Number of D/A Converters 2 2 2 4
Base Product Number DAC8563 DAC8562 DAC8562 DAC8564
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 105°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply, Analog 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Architecture String DAC String DAC String DAC String DAC
Supplier Device Package 10-VSSOP 10-WSON (3x3) 10-VSSOP 16-TSSOP
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
