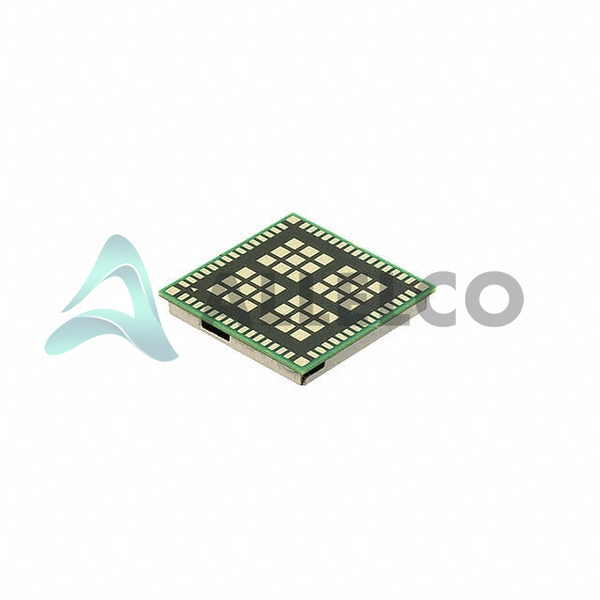

WL1831MODGBMOCT - Texas Instruments

Manufacturer Part Number

WL1831MODGBMOCT

Manufacturer

Texas Instruments

Introduction

Integrated RF transceiver module for Bluetooth and Wi-Fi connectivity

Product Features and Performance

Supports Bluetooth 4.2 and Wi-Fi 802.11b/g/n

Operates in the 2.4GHz frequency band

Transmit power up to 17.3dBm

Receive sensitivity down to -96.3dBm

Data rates up to 54Mbps

Supports SDIO and UART serial interfaces

Product Advantages

Compact 100-SMD module design

Wide operating temperature range of -20°C to 70°C

Flexible power supply voltage from 2.9V to 4.8V

Key Technical Parameters

Frequency: 2.4GHz

Operating Temperature: -20°C ~ 70°C

Supply Voltage: 2.9V ~ 4.8V

Transmit Current: 238mA ~ 420mA

Receive Current: 49mA ~ 85mA

Output Power: 17.3dBm

Sensitivity: -96.3dBm

Supported Protocols: Bluetooth 4.2, Wi-Fi 802.11b/g/n

Modulation: CCK, DSSS, GFSK, OFDM

Quality and Safety Features

RoHS3 compliant

Compatibility

Compatible with a wide range of embedded systems and IoT applications

Application Areas

Bluetooth and Wi-Fi connectivity in IoT devices, consumer electronics, industrial automation, and more

Product Lifecycle

Currently available, no known discontinuation plans

Key Reasons to Choose This Product

Comprehensive Bluetooth and Wi-Fi connectivity in a compact module

Broad operating temperature range and flexible power supply

High transmit power and sensitivity for reliable wireless performance

Proven Texas Instruments quality and reliability

Suitable for a wide range of embedded and IoT applications
