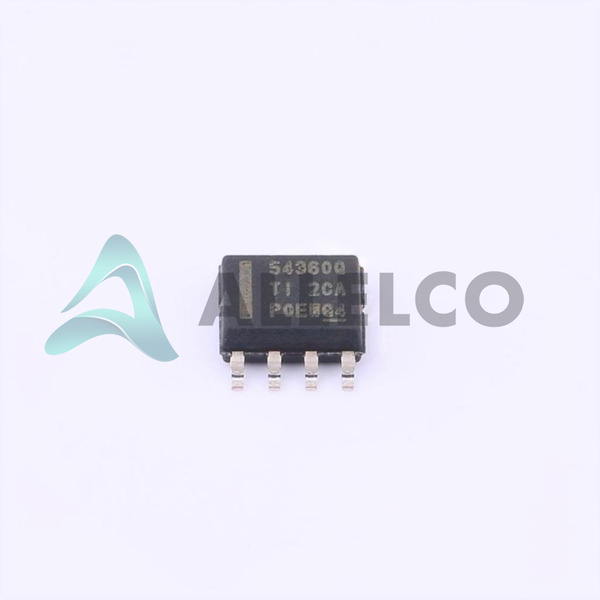

TPS54360QDDARQ1 - Texas Instruments

Manufacturer Part Number

TPS54360QDDARQ1

Manufacturer

texas-instruments

Introduction

The TPS54360QDDARQ1 is a buck, split rail voltage regulator designed for automotive applications, emphasizing low input voltage and high output current capabilities.

Product Features and Performance

Adjustable output voltage ranging from 0.8V to 58.8V

Can handle input voltage from 4.5V up to 60V

Supports output current up to 3.5A

Switching frequency between 100kHz and 2.5MHz

Operates over a broad temperature range from -40°C to 150°C

Integrated with Eco-Mode™ for improved efficiency

Product Advantages

High efficiency at light loads due to Eco-Mode™

Wide range of input and adjustable output voltage suitable for various applications

High temperature tolerance ensures reliability in harsh environments

Key Technical Parameters

Voltage Input (Min): 4.5V

Voltage Input (Max): 60V

Voltage Output (Min/Fixed): 0.8V

Voltage Output (Max): 58.8V

Current Output: 3.5A

Frequency Switching: 100kHz ~ 2.5MHz

Operating Temperature: -40°C ~ 150°C

Quality and Safety Features

Automotive grade product

Qualification per AEC-Q100 standard

Constructed to withstand harsh environmental conditions

Compatibility

Compatible with a wide range of input and output voltage requirements

Supports various automotive and industrial applications

Application Areas

Automotive systems

Industrial power supplies

Telecommunications equipment

Product Lifecycle

Not recommended for new designs

Check for potential upgrades or replacement products

Several Key Reasons to Choose This Product

Versatile input and output voltage options accommodate diverse design requirements

Eco-Mode™ integration maximizes efficiency and reduces power loss

Robust quality and safety features aligned with the demanding automotive standards

Extended operating temperature range bolsters reliability under extreme conditions
