Manufacturer Part Number

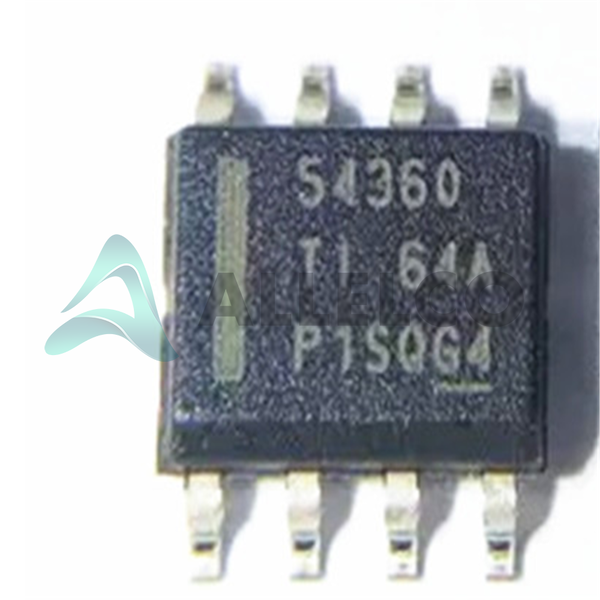

TPS54360DDAR
Manufacturer
Texas Instruments
Introduction
The TPS54360DDAR is a high-performance, step-down DC-DC converter that offers a wide input voltage range, adjustable output voltage, and high output current capability.
Product Features and Performance
Wide input voltage range: 4.5V to 60V
Adjustable output voltage from 0.8V to 58.8V
High output current capability up to 3.5A
Switching frequency range of 100kHz to 2.5MHz
Synchronous rectification for high efficiency
Integrated power MOSFETs
Eco-Mode for improved light-load efficiency
Thermal shutdown and overcurrent protection
Product Advantages
Compact 8-pin PowerPAD package
High efficiency and wide input voltage range
Adjustable output voltage for flexible design
Robust protection features for reliable operation
Automotive and industrial applications
Key Technical Parameters
Output Type: Adjustable
Mounting Type: Surface Mount
Operating Temperature: -40°C to 150°C
Switching Frequency: 100kHz to 2.5MHz
Topology: Buck, Split Rail
Output Current: 3.5A
Quality and Safety Features
RoHS3 Compliant
Thermal shutdown and overcurrent protection
Compatibility
The TPS54360DDAR is compatible with a wide range of applications, including automotive, industrial, and general electronics.
Application Areas
Automotive electronics
Industrial control systems
Power supplies
Telecom equipment
Consumer electronics
Product Lifecycle
The TPS54360DDAR is an active product and is not nearing discontinuation. Replacement or upgrade options may be available from Texas Instruments.
Key Reasons to Choose This Product
Wide input voltage range for versatile applications
Adjustable output voltage for design flexibility
High output current capability for demanding loads
Compact package and high efficiency for space-constrained designs
Robust protection features for reliable operation
Automotive and industrial grade for harsh environments
