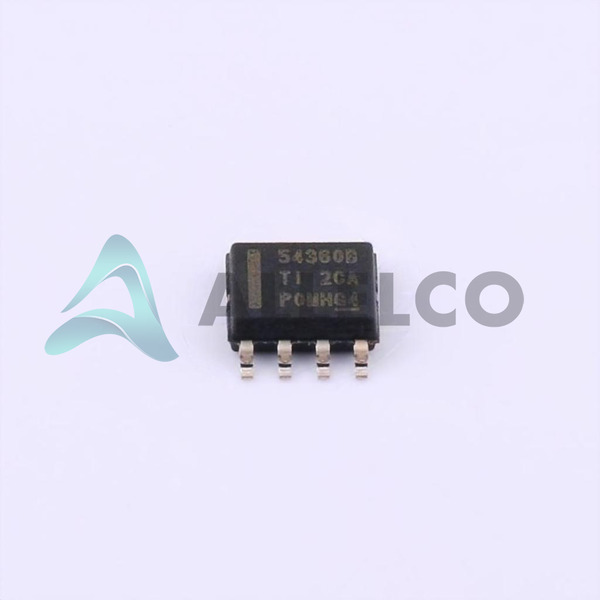

TPS54360BQDDAQ1 - Texas Instruments

Manufacturer Part Number: TPS54360BQDDAQ1

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TPS54360BQDDAQ1

ECAD Model

Parts Description: IC REG BCK SPLIT RAIL ADJ 8SOPWR

Detailed Description

Package: 8-PowerSOIC (0.154", 3.90mm Width)

Data sheet: TPS54360B-Q1 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

In stock: 8696

Specifications

TPS54360BQDDAQ1 Tech Specifications
Texas Instruments - TPS54360BQDDAQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54360BQDDAQ1

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	58.8V
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	60V
Topology	Buck, Split Rail
Synchronous Rectifier	No
Supplier Device Package	8-SO PowerPad
Series	Automotive, AEC-Q100, Eco-Mode™
Package / Case	8-PowerSOIC (0.154", 3.90mm Width)

Product Attribute	Attribute Value
Package	Tube
Output Type	Adjustable
Output Configuration	Positive
Operating Temperature	-40°C ~ 150°C (TJ)
Number of Outputs	1
Mounting Type	Surface Mount
Function	Step-Down
Frequency - Switching	100kHz ~ 2.5MHz
Current - Output	3.5A
Base Product Number	TPS54360

Parts Introduction

Manufacturer Part Number

TPS54360BQDDAQ1

Manufacturer

Texas Instruments

Introduction

The TPS54360BQDDAQ1 is a DC-DC step-down switching regulator designed for automotive and power management applications.

Product Features and Performance

Efficient power conversion with Eco-Mode

Step-down (buck) converter topology

Adjustable output voltage

Supports a split-rail configuration

Single output channel

Wide input voltage range from 4.5V to 60V

Adjustable output voltage range from 0.8V to 58.8V

5A output current capability

Switching frequency range from 100kHz to 2.5MHz

Operating temperature range -40°C to 150°C

Non-synchronous rectifier design

Automotive grade product, AEC-Q100 qualified

Product Advantages

High efficiency and reduced power loss

Versatile voltage support for various applications

Stable performance over wide operating temperatures

Suitable for rugged automotive environments

Comprehensive qualification for reliability

Key Technical Parameters

Input Voltage (Min): 4.5V

Input Voltage (Max): 60V

Output Voltage (Min/Fixed): 0.8V

Output Voltage (Max): 58.8V

Current - Output: 3.5A

Frequency - Switching: 100kHz ~ 2.5MHz

Quality and Safety Features

Automotive-grade reliability

AEC-Q100 qualification for quality assurance

Thermal shutdown and overcurrent protection

Compatibility

Compatible with split-rail applications

Surface mount 8-PowerSOIC package for PCB integration

Application Areas

Automotive electronics

Power management and distribution systems

Industrial controls

Consumer electronics

Product Lifecycle

Active status, not currently nearing discontinuation

Replacement or upgrade options are typically available

Several Key Reasons to Choose This Product

Proven reliability for automotive applications

Wide input voltage range accommodating various power sources

Adaptable output settings for a broad range of devices

High thermal performance suited to challenging environments

Compliance with industry standards (AEC-Q100)

Compact form factor for space-constrained applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54360BQDDAQ1

Product Attribute
Part Number	TPS54360BQDDAQ1	TPS54361DPRR	TPS54361QDPRRQ1	TPS54361QDPRTQ1
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Base Product Number	TPS54360	TPS54361	TPS54361	TPS54361
Topology	Buck, Split Rail	Buck, Split Rail	Buck, Split Rail	Buck, Split Rail
Voltage - Input (Min)	4.5V	4.5V	4.5V	4.5V
Voltage - Output (Max)	58.8V	60V	58.8V	58.8V
Supplier Device Package	8-SO PowerPad	10-WSON (4x4)	10-WSON (4x4)	10-WSON (4x4)
Output Type	Adjustable	Adjustable	Adjustable	Adjustable
Frequency - Switching	100kHz ~ 2.5MHz	100kHz ~ 2.5MHz	100kHz ~ 2.5MHz	100kHz ~ 2.5MHz
Package / Case	8-PowerSOIC (0.154", 3.90mm Width)	10-WDFN Exposed Pad	10-WDFN Exposed Pad	10-WDFN Exposed Pad
Output Configuration	Positive	Positive	Positive	Positive
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 85°C (TA)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Voltage - Output (Min/Fixed)	0.8V	0.8V	0.8V	0.8V
Series	Automotive, AEC-Q100, Eco-Mode™	Eco-Mode™	Automotive, AEC-Q100, Eco-Mode™	Automotive, AEC-Q100, Eco-Mode™
Function	Step-Down	Step-Down	Step-Down	Step-Down
Voltage - Input (Max)	60V	60V	60V	60V
Package	Tube	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Current - Output	3.5A	3.5A	3.5A	3.5A
Synchronous Rectifier	No	No	No	No
Number of Outputs	1	1	1	1

TPS54360BQDDAQ1 Datasheet PDF

Download TPS54360BQDDAQ1 pdf datasheets and Texas Instruments documentation for TPS54360BQDDAQ1 - Texas Instruments.

HTML Datasheet: TPS54360B-Q1 Datasheet.pdf
