Manufacturer Part Number

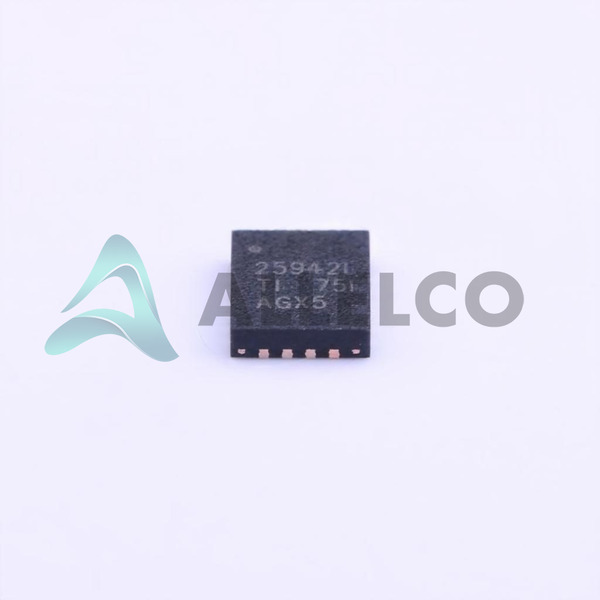

TPS25942LRVCT
Manufacturer
Texas Instruments
Introduction
TPS25942LRVCT is a high-precision electronic fuse from Texas Instruments designed to provide current regulation and management for power applications.
Product Features and Performance
Electronic Fuse function
Wide input voltage range: 2.7V to 18V
Current output capacity: 5.3A
High operating temperature range: -40°C to 125°C
Surface Mount technology
20-WFQFN Exposed Pad package for efficient heat dissipation
Accurate current sensing with ±8% accuracy
Product Advantages
Protection against overcurrent conditions
Small footprint due to the 20-WQFN package
Suitable for automated high-volume production with Tape & Reel packaging
Robust thermal performance under high temperature conditions
Key Technical Parameters
Input Voltage Range: 2.7V to 18V
Output Current: 5.3A
Accuracy: ±8%
Operating Temperature Range: -40°C to 125°C
Quality and Safety Features
Built-in overcurrent protection
Thermal shutdown for device safety
Industry-leading reliability for power management circuits
Compatibility
Compatible with a wide range of input voltages and current requirements
Designed for surface mount technology compatible with standard PCB assembly processes
Application Areas
Power supply and distribution systems
Consumer electronics power management
Industrial and automotive power management
Battery-powered devices and circuits
Product Lifecycle
Status: Active
Not nearing discontinuation and replacements or upgrades are available
Several Key Reasons to Choose This Product
Broad operating temperature range for reliability in harsh environments
High current output for demanding applications
Tape & Reel packaging for efficient manufacturing processes
Accurate current regulation for sensitive electronic devices
Small form factor, reducing space on the PCB
Ongoing product support and availability from Texas Instruments
