Manufacturer Part Number

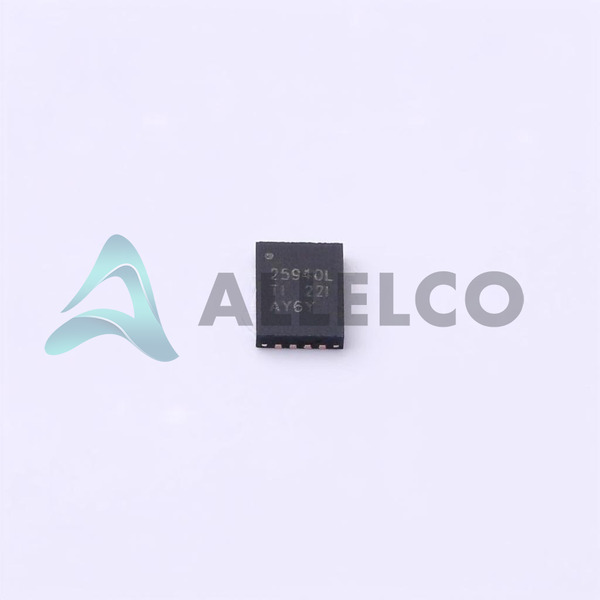

TPS25940LRVCR
Manufacturer
Texas Instruments
Introduction
The TPS25940LRVCR is a robust integrated circuit designed for power management, particularly current regulation and management.
Product Features and Performance
Electronic Fuse Functionality
Wide Input Voltage Range of 2.7V to 18V
High Output Current Capability of 5.3A
High Operating Temperature Range from -40°C to 125°C
Surface Mount 20-WFQFN Exposed Pad for thermal efficiency
High Accuracy of ±8% ensures reliable performance
Product Advantages
Excellent circuit protection for a variety of applications
High reliability in harsh temperature environments
Compact form factor for space-constrained applications
Integrated electronic fuse reduces the need for additional discrete components
Key Technical Parameters
Accuracy: ±8%
Voltage - Input: 2.7V to 18V
Current - Output: 5.3A
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mount
Package/Case: 20-WFQFN Exposed Pad
Supplier Device Package: 20-WQFN (3x4)
Quality and Safety Features
Robust thermal pad design mitigates overheating risks
Built-in current regulation protects against overcurrent conditions
Compatibility
Compatible with a wide range of voltage inputs and various surface mount technologies
Application Areas
Power supplies
Computing systems
Industrial controls
Telecommunications equipment
Consumer electronics
Product Lifecycle
Active status, not currently nearing discontinuation
Replacements or upgrades should be available, if necessary
Several Key Reasons to Choose This Product
Provides high-efficiency current management, suitable for a wide voltage range
Enables compact circuit design with surface mount technology
Enhances system reliability with thermal and current overload protection
Versatile for multiple applications due to wide operating temperature range
Backed by Texas Instruments' reputation for quality and support
