Manufacturer Part Number

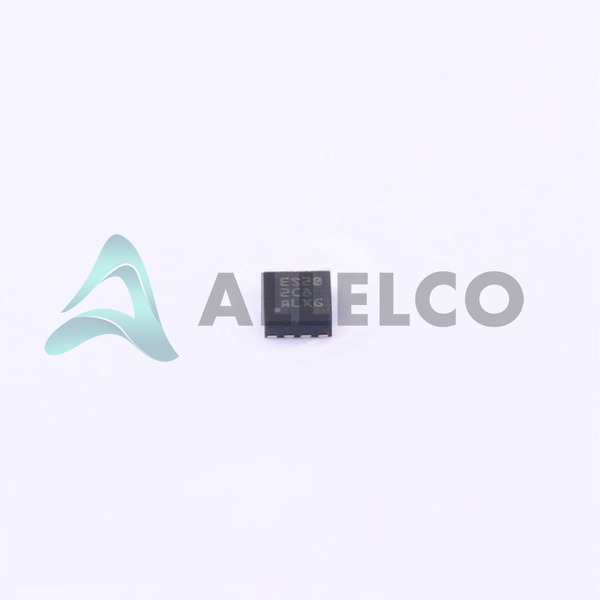

TPS259520DSGR
Manufacturer
Texas Instruments
Introduction
The TPS259520DSGR is an electronic fuse designed for Power Management applications, ensuring optimal current regulation and management.
Product Features and Performance
Operates within an input voltage range of 2.7V to 18V
Provides a current output of 4A
Suitable for operating temperatures from -40°C to 125°C
Accuracy of ±7.5%
Surface mount design
Utilizes the 8-WFDFN exposed pad package
Product Advantages
High accuracy ensures reliable performance
Wide operating voltage and temperature range make it versatile for various applications
Compact surface mount format eases integration into designs
Key Technical Parameters
Input Voltage: 2.7V ~ 18V
Output Current: 4A
Operating Temperature: -40°C ~ 125°C (TJ)
Accuracy: ±7.5%
Quality and Safety Features
Robust electronic fuse functionality safeguards against overcurrent
Compatibility
Compatible with various circuit designs due to its adaptable voltage range and surface mount package
Application Areas
Power management systems
Current regulation modules
Overcurrent protection circuits
Product Lifecycle
Currently Active
Not nearing discontinuation
Future replacements or upgrades available as technology advances
Several Key Reasons to Choose This Product
Reliable current regulation within a broad voltage range enhances versatility in use
High accuracy and temperature tolerance ensure dependable performance in harsh environments
Compact form factor facilitates easier design integration and space savings in printed circuit boards
