Manufacturer Part Number

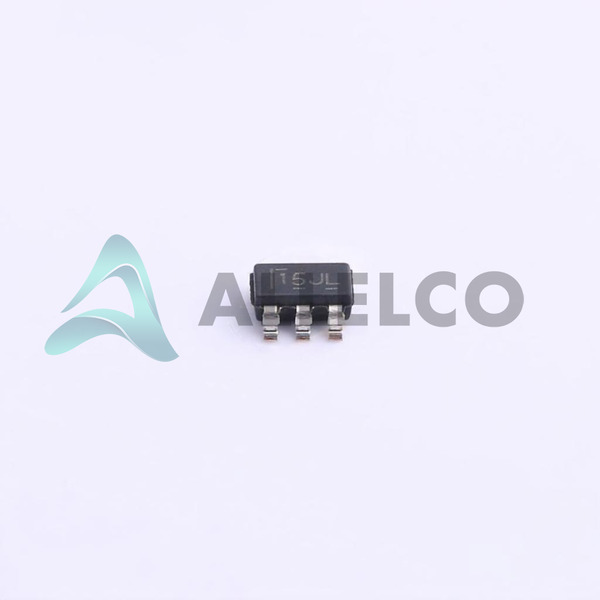

TPS2553DDBVT
Manufacturer
Texas Instruments
Introduction
The TPS2553DDBVT from Texas Instruments is a power management integrated circuit (PMIC) designed for power distribution and load driving applications.
Product Features and Performance
Supports a wide voltage range of 2.7V to 6.5V for versatile application use.
Capable of delivering output currents up to 1.5A.
Integrated slew rate control for smoother operation.
Status flag feature for real-time monitoring.
Low on-resistance of 85mOhm ensures efficient operation.
Features adjustable current limiting for enhanced protection.
Includes over-temperature protection and under-voltage lockout (UVLO) for improved safety.
Product Advantages
High efficiency due to low on-resistance.
Flexible power range compatibility.
Real-time monitoring capability with a status flag.
Enhanced safety features including adjustable current limiting and protection mechanisms.
Slew rate control minimizes inrush current and voltage spikes.
Key Technical Parameters
Output Configuration: High Side
Output Type: N-Channel
Interface: On/Off
Current Output (Max): 1.5A
Rds On (Typ): 85mOhm
Operating Temperature: -40°C to 150°C (TJ)
Quality and Safety Features
Adjustable current limiting.
Over-temperature protection.
Under-voltage lockout (UVLO).
Compatibility
Compatible with a range of voltages from 2.7V to 6.5V.
Surface Mount, SOT-23-6 packaging supports standard PCB manufacturing processes.
Application Areas
Power distribution systems.
Load driver applications in consumer electronics.
Industrial power management solutions.
Product Lifecycle
Status: Active
Not currently nearing discontinuation, with replacements or upgrades not specified.
Several Key Reasons to Choose This Product
Efficient power distribution and load driving capabilities.
Broad voltage compatibility expands application potential.
Real-time monitoring and safety features ensure reliable operation.
Low on-resistance for high efficiency.
Texas Instruments' reputation for quality and reliability.
