HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2554DRCR

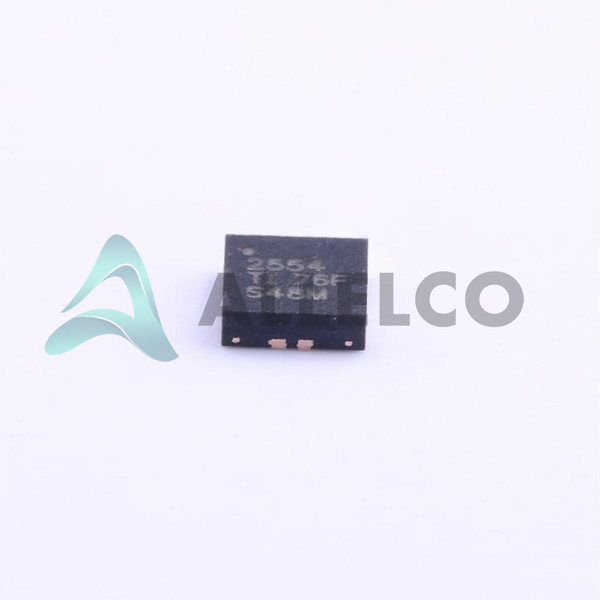

TPS2554DRCR Image
TPS2554DRCR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2554DRCR - Texas Instruments

Manufacturer Part Number
TPS2554DRCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2554DRCR
ECAD Model
Parts Description
IC PWR SWITCH N-CHAN 1:1 10VSON
Package
10-VFDFN Exposed Pad
Data sheet
TPS2554,2555.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 30526

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2554DRCR Tech Specifications
Texas Instruments - TPS2554DRCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2554DRCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 4.5V ~ 5.5V
Switch Type General Purpose
Supplier Device Package 10-VSON (3x3)
Series -
Rds On (Typ) 73mOhm
Ratio - Input:Output 1:1
Package / Case 10-VFDFN Exposed Pad
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type -
Features Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Current - Output (Max) 2.5A
Base Product Number TPS2554

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS2554DRCR

Manufacturer

Texas Instruments

Introduction

High-side MOSFET power distribution switch with adjustable current limit and thermal shutdown

Product Features and Performance

N-channel MOSFET power switch

Adjustable current limit up to 2.5A

Thermal shutdown protection

Under-voltage lockout (UVLO)

Status flag output

-40°C to 125°C operating temperature range

Product Advantages

Compact 10-pin VSON package

High efficiency and low on-resistance

Integrated protection features

Ease of use with simple on/off interface

Key Technical Parameters

Voltage: 4.5V to 5.5V

Maximum output current: 2.5A

On-resistance (Rds_on): 73mΩ

Quality and Safety Features

RoHS3 compliant

Excellent thermal management

Robust overcurrent and thermal protection

Compatibility

Surface mount device

Compatible with various power supply and load applications

Application Areas

Power distribution and load switching

Portable electronics

Industrial and automotive systems

Product Lifecycle

Active product

Replacement and upgrade options available

Key Reasons to Choose This Product

Compact and efficient design

Comprehensive protection features

Ease of integration and use

Reliable and long-lasting performance

Suitable for a wide range of applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2554DRCR

Product Attribute TPS2554DRCR TPS2555DRCT TPS2554DRCT TPS2556DRBT
Part Number TPS2554DRCR TPS2555DRCT TPS2554DRCT TPS2556DRBT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Rds On (Typ) 73mOhm 73mOhm 73mOhm 22mOhm
Interface On/Off On/Off On/Off On/Off
Number of Outputs 1 1 1 1
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Ratio - Input:Output 1:1 1:1 1:1 1:1
Switch Type General Purpose General Purpose General Purpose General Purpose
Base Product Number TPS2554 TPS2555 TPS2554 TPS2556
Voltage - Load 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V 2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Current - Output (Max) 2.5A 2.5A 2.5A 5A
Package / Case 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 8-VDFN Exposed Pad
Supplier Device Package 10-VSON (3x3) 10-VSON (3x3) 10-VSON (3x3) 8-SON (3x3)
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Output Configuration High Side High Side High Side High Side
Features Status Flag Status Flag Status Flag Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO
Output Type N-Channel N-Channel N-Channel N-Channel
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Input Type - - - Non-Inverting
Series - - - -

TPS2554DRCR Datasheet PDF

Download TPS2554DRCR pdf datasheets and Texas Instruments documentation for TPS2554DRCR - Texas Instruments.
