HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2553DBVT

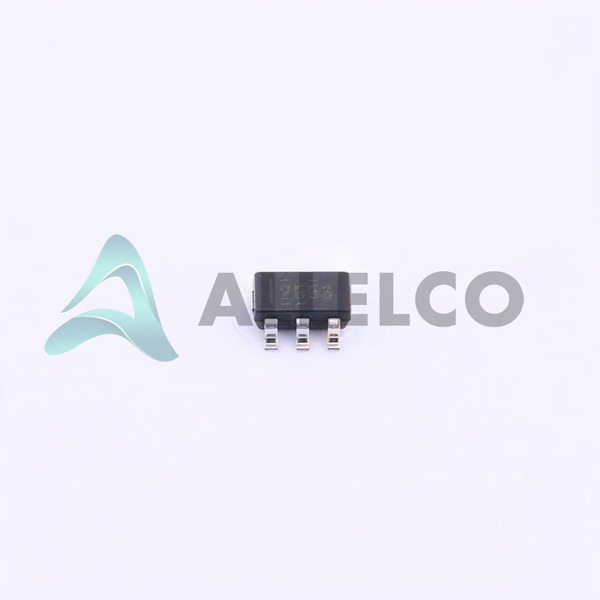

TPS2553DBVT Image
TPS2553DBVT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2553DBVT - Texas Instruments

Manufacturer Part Number
TPS2553DBVT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2553DBVT
ECAD Model
Parts Description
IC PWR SWITCH N-CHAN 1:1 SOT23-6
Package
SOT-23-6
Data sheet
TPS2552,53(-1).pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 56590

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2553DBVT Tech Specifications
Texas Instruments - TPS2553DBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2553DBVT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.5V ~ 6.5V
Switch Type General Purpose
Supplier Device Package SOT-23-6
Series -
Rds On (Typ) 85mOhm
Ratio - Input:Output 1:1
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 150°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Current - Output (Max) 1.5A
Base Product Number TPS2553

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS2553DBVT

Manufacturer

Texas Instruments

Introduction

Precision Adjustable Current-Limited Power-Distribution Switch

Product Features and Performance

Precision Current Limiting

Adjustable Current Limit

Slew Rate Controlled Load Switching

Status Flag Output

Product Advantages

High Accuracy Current Sensing

Programmable Over-Current Protection

Thermal Shutdown Protection

Under-Voltage Lockout (UVLO)

Key Technical Parameters

Current Limit (Max): 1.5A

Rds On (Typical): 85mOhm

Voltage - Load: 2.5V to 6.5V

Operating Temperature: -40°C to 150°C

Quality and Safety Features

Current Limiting (Adjustable)

Over-Temperature Protection

Reverse Current Protection

Compatibility

Compatible with High Side Load Applications

Works with 2.5V to 6.5V Voltage Supplies

Application Areas

USB Power Distribution

Portable Devices

Battery-Powered Equipment

Product Lifecycle

Active Status

Standard Lifecycle

Several Key Reasons to Choose This Product

Precision control for enhanced system protection

Flexibility with adjustable current limiting

Robust safety features for reliable operation

Suitable for multiple applications across various voltage requirements

Established manufacturer with industry-standard packaging for easy integration

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2553DBVT

Product Attribute TPS2553DBVT TPS2553DRVR-1 TPS2553DRVT-1 TPS2552DRVT
Part Number TPS2553DBVT TPS2553DRVR-1 TPS2553DRVT-1 TPS2552DRVT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO Current Limiting (Adjustable), Over Temperature, UVLO
Input Type Non-Inverting Non-Inverting Non-Inverting Non-Inverting
Base Product Number TPS2553 TPS2553 TPS2553 TPS2552
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Features Slew Rate Controlled, Status Flag Slew Rate Controlled, Status Flag Slew Rate Controlled, Status Flag Slew Rate Controlled, Status Flag
Switch Type General Purpose General Purpose General Purpose General Purpose
Interface On/Off On/Off On/Off On/Off
Output Configuration High Side High Side High Side High Side
Series - - - -
Current - Output (Max) 1.5A 1.5A 1.5A 1.5A
Voltage - Load 2.5V ~ 6.5V 2.5V ~ 6.5V 2.5V ~ 6.5V 2.5V ~ 6.5V
Supplier Device Package SOT-23-6 6-WSON (2x2) 6-WSON (2x2) 6-WSON (2x2)
Ratio - Input:Output 1:1 1:1 1:1 1:1
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Output Type N-Channel N-Channel N-Channel N-Channel
Package / Case SOT-23-6 6-WDFN Exposed Pad 6-WDFN Exposed Pad 6-WDFN Exposed Pad
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Rds On (Typ) 85mOhm 100mOhm 100mOhm 100mOhm
Number of Outputs 1 1 1 1
