Manufacturer Part Number

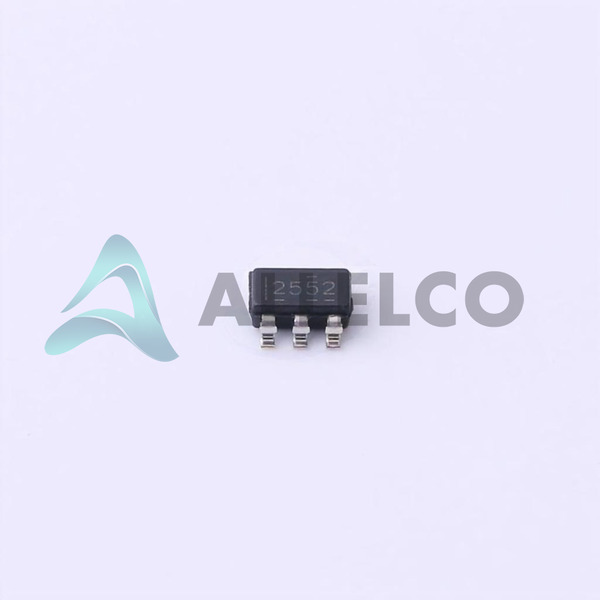

TPS2552DBVT
Manufacturer
Texas Instruments
Introduction
High-Side N-Channel Power Distribution Switch with Adjustable Current Limit and Thermal Shutdown
Product Features and Performance
Slew Rate Controlled
Status Flag
1 Output
High Side Configuration
Adjustable Current Limit
Over Temperature Protection
UVLO Protection
85mΩ Typical On-Resistance
Operates from 2.5V to 6.5V
5A Maximum Output Current
Product Advantages
Integrated protection features
Adjustable current limit
Low on-resistance
Wide operating voltage range
Key Technical Parameters
Operating Temperature: -40°C to 150°C
Manufacturer's Packaging: SOT-23-6
Base Product Number: TPS2552
Package / Case: SOT-23-6
Mounting Type: Surface Mount
Input Type: Non-Inverting
Output Configuration: High Side
Voltage Supply: Not Required
Input to Output Ratio: 1:1
Interface: On/Off
Fault Protection: Current Limit (Adjustable), Over Temperature, UVLO
Switch Type: General Purpose
Voltage Load: 2.5V to 6.5V
Current Output (Max): 1.5A
Quality and Safety Features
ROHS3 Compliant
Current Limiting
Thermal Shutdown
UVLO Protection
Compatibility
Suitable for a wide range of applications that require a robust power distribution switch with integrated protection features.
Application Areas
Power management
Load switching
Overcurrent protection
Portable electronics
Industrial automation
Automotive electronics
Product Lifecycle
The TPS2552DBVT is an active product from Texas Instruments. Replacement or upgrade options may be available in the future as technology evolves.
Key Reasons to Choose This Product
Integrated protection features (adjustable current limit, thermal shutdown, UVLO) for reliable operation
Low on-resistance (85mΩ typical) for efficient power delivery
Wide operating voltage range (2.5V to 6.5V) for versatile applications
High output current capability (1.5A max) to handle higher load demands
Small, surface-mount package (SOT-23-6) for compact design
