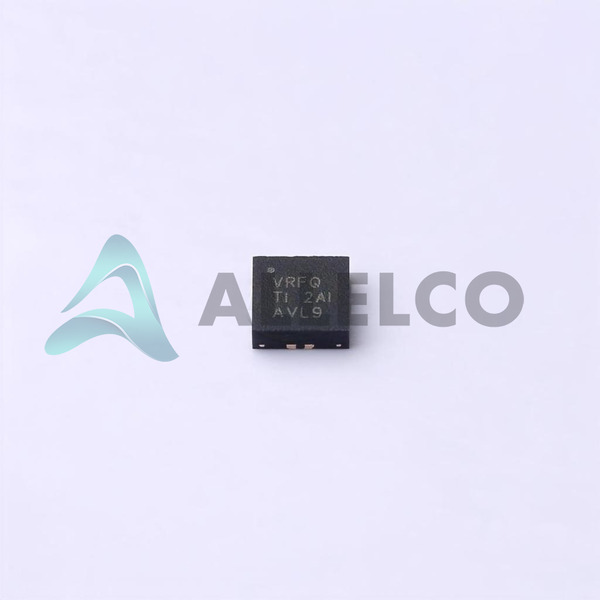

TPS2003CDRCR - Texas Instruments

Manufacturer Part Number

TPS2003CDRCR

Manufacturer

Texas Instruments

Introduction

The TPS2003CDRCR is a dual-channel Power Distribution Switch (PDS) integrated circuit (IC) that provides efficient and reliable power control for a wide range of applications.

Product Features and Performance

Dual-channel N-channel MOSFET switches with high-side configuration

Integrated current limiting, over-temperature, reverse current, and UVLO protection

Low on-resistance (RDS(on)) of 70 mΩ for efficient power delivery

Capable of delivering up to 2A of output current per channel

Wide operating temperature range of -40°C to 125°C

Product Advantages

Robust protection features for reliable operation

Efficient power delivery with low on-resistance

Compact 10-VSON (3x3) package for space-constrained designs

Flexible control options with on/off interface

Key Technical Parameters

Input Voltage Range: 4.5V to 5.5V

Output Current (max): 2A per channel

On-Resistance (RDS(on)): 70 mΩ (typical)

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

ROHS3 compliant

Integrated protection features for current limiting, over-temperature, reverse current, and UVLO

Compatibility

Suitable for a wide range of applications that require efficient and reliable power distribution and control

Application Areas

Industrial automation

Consumer electronics

Telecommunications equipment

Automotive systems

Product Lifecycle

The TPS2003CDRCR is an active product, with no plans for discontinuation.

Replacements or upgrades may be available from Texas Instruments, depending on specific application requirements.

Key Reasons to Choose This Product

Robust protection features for reliable operation

Efficient power delivery with low on-resistance

Compact package for space-constrained designs

Flexible control options with on/off interface

Wide operating temperature range for versatile applications

Proven reliability and quality from Texas Instruments
