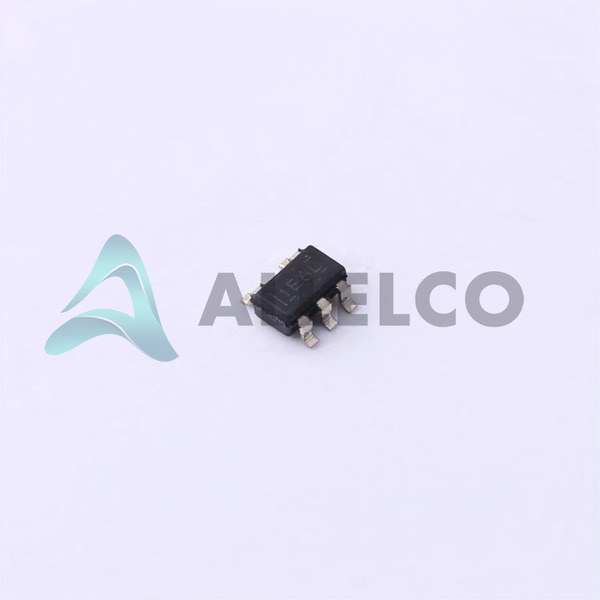

TPS2001DDBVR - Texas Instruments

Manufacturer Part Number

TPS2001DDBVR

Manufacturer

Texas Instruments

Introduction

The TPS2001DDBVR is a power distribution switch designed for USB applications, capable of handling up to 2A of continuous current.

Product Features and Performance

Single USB switch

High Side Output Configuration with N-Channel Output Type

On/Off Interface

Supports 5.5V load voltage

Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO for fault protection

Status Flag feature for monitoring

Operating temperature range from -40°C to 85°C

Product Advantages

Integrated fault protection enhances system reliability

Status Flag allows for easy monitoring of switch status

No external voltage supply required

Key Technical Parameters

Voltage Load: 5.5V

Current Output (Max): 2A

Rds On (Typ): 72mOhm

Operating Temperature: -40°C ~ 85°C (TA)

Quality and Safety Features

Current limiting, over temperature protection, and reverse current prevention

UVLO (Under Voltage Lock Out) for additional safety

Compatibility

Compatible with USB-powered devices

Application Areas

USB hubs

Portable USB devices

Computing and consumer applications

Product Lifecycle

Product Status: Active

No indication of discontinuation, ensuring long-term availability and support

Several Key Reasons to Choose This Product

Reliable power switching with integrated fault protection

Operates efficiently with typical Rds On of 72mOhm

High compatibility with USB interfaces

Robust operation in diverse temperatures from -40°C to 85°C

Easy implementation in designs with surface mount package type SOT-23-5
